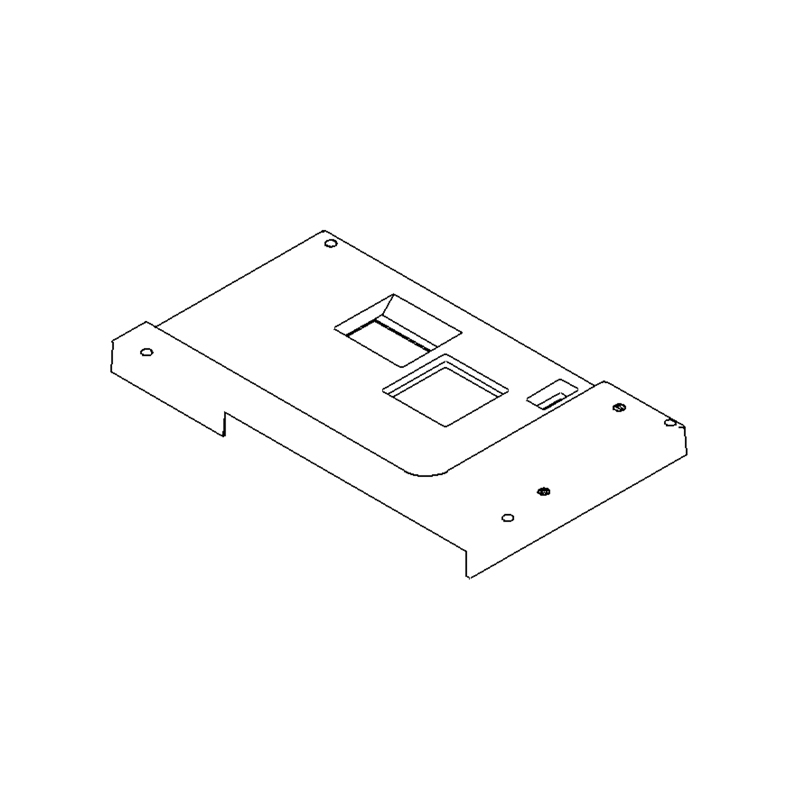

High-Voltage Box Panel for AIDC High-Rate Lithium Battery Systems

High-Voltage Box Panel for AIDC High-Rate Lithium Battery Energy Storage Systems

Product Name: High-Voltage Box Panel

Product Dimensions: 440 mm × 265 mm × 27 mm

The DP60 high-voltage box is a high-voltage control enclosure designed for AIDC computing energy storage cabinets. It integrates high-voltage busbar distribution, contactors, fuses, the main Battery Management System (BMS) controller, an emergency stop switch, and sampling interfaces.

The DP60 high-voltage box panel serves as the front human-machine interface (HMI) and protective panel of the high-voltage box. It is a precision injection-molded component belonging to the battery pack and high-voltage cabinet panel category. It is a standard exterior and safety structural component of the DP60 AIDC liquid-cooled energy storage cabinet.

The DP60 high-voltage box panel is precision injection-molded from UL 94 V-0-rated, halogen-free PA66-GF30 (30% glass-fiber-reinforced polyamide 66) and is specifically developed for the high-voltage busbar distribution box used in the DP60 AIDC high-rate energy storage system.

The panel integrates an LCD display window, status indicator light openings, an emergency stop button mounting position, communication interface openings, and a nameplate screen-printing area. It combines four key functions: high-voltage insulation and protection, overall equipment aesthetics, IP sealing, and human-machine operation. It is suitable for indoor rack-mounted installation in AIDC data centers and is designed to meet the UL 9540A and NFPA 75 fire safety requirements applicable to data center energy storage projects.

High-Voltage Box Panel for AIDC High-Rate Lithium Battery Systems
Battery Enclosures & Panels
  • Product Specifications

    Key Features

    1. High-Voltage Safety Protection: The panel acts as a front protective barrier for the high-voltage box, isolating internal high-voltage components and preventing accidental human contact with high-voltage circuits. Its high Comparative Tracking Index (CTI) material helps meet high-voltage creepage distance requirements.

    2. Integrated Human-Machine Interface: The panel provides reserved openings for an LCD display window, LED indicator lights, an emergency stop switch, and USB/RS-485 communication interfaces. Labels and warning symbols can be applied directly through screen printing.

    3. Sealing and Dust Protection: An integrated sealing-gasket groove is formed on the back of the panel. When assembled, the panel is designed to achieve IP54 protection, helping prevent dust and condensation from entering the high-voltage compartment.

    4. Structural Positioning: Integrally molded snap-fit features and screw bosses support automated production-line assembly. Precision positioning-hole tolerances ensure accurate alignment with the high-voltage box housing.

    5. Exterior Finish and Labeling: The surface can be finished with a matte textured pattern, laser engraving, screen-printed logos, high-voltage warning labels, and parameter nameplates to meet the identification and labeling requirements of overseas projects.
