12V High-Rate Lead Acid Energy Storage Battery Case

The 12V High-Rate Lead Acid Energy Storage Battery Case is specially designed for high-rate lead-acid batteries used in short-term backup power applications. Made of high-strength ABS engineering plastic and reinforced structural design, the case provides excellent impact resistance, durability, and reliable sealing performance to protect internal battery components.
This battery case is suitable for high-power batteries with backup time within 15 minutes. It is widely used in UPS systems, energy storage equipment, communication power systems, and industrial power supply applications. Precision mold manufacturing ensures stable dimensions and strong structural integrity to meet high standards for battery assembly.
With advanced manufacturing technology and strict quality control, the battery case offers excellent safety, stability, and durability, effectively protecting the battery during transportation, installation, and operation.

Key Features
1. High-Strength ABS Material
Made from high-quality ABS engineering plastic with excellent mechanical strength, heat resistance, and durability.
2. Excellent Sealing Performance
Advanced sealing structure ensures reliable enclosure and helps prevent electrolyte leakage during normal operation.
3. Strong Impact Resistance
Reinforced structure provides strong protection against external impacts.
4. Excellent Vibration Resistance
Designed to withstand vibration and mechanical stress in industrial and energy storage environments.
5. High Structural Stability
Precision mold manufacturing ensures stable dimensions and strong structural integrity.
6. Long Service Life
Durable material and optimized structure provide long-lasting performance.

Applications
UPS Power Supply Systems
Energy Storage Battery Systems
Telecommunication Backup Power Systems
Industrial Power Equipment
Emergency Power Backup Systems

12V High-Rate Lead Acid Energy Storage Battery Case

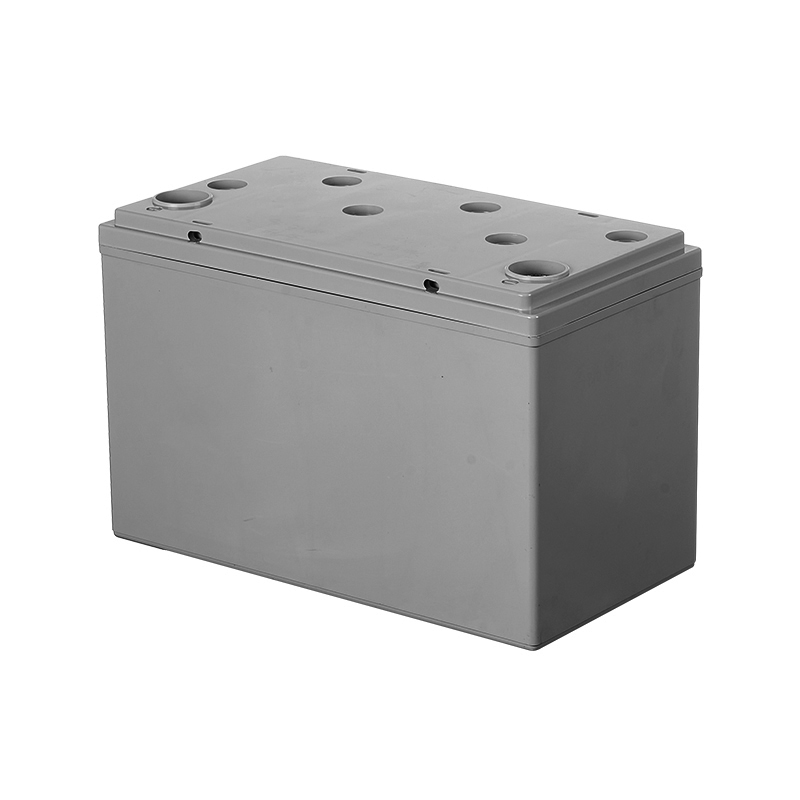

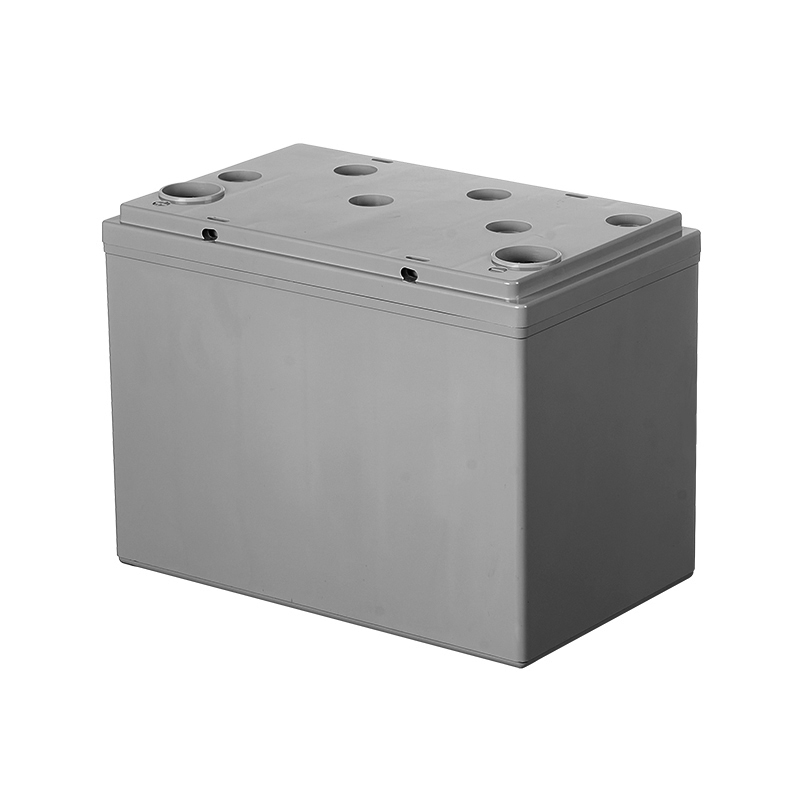

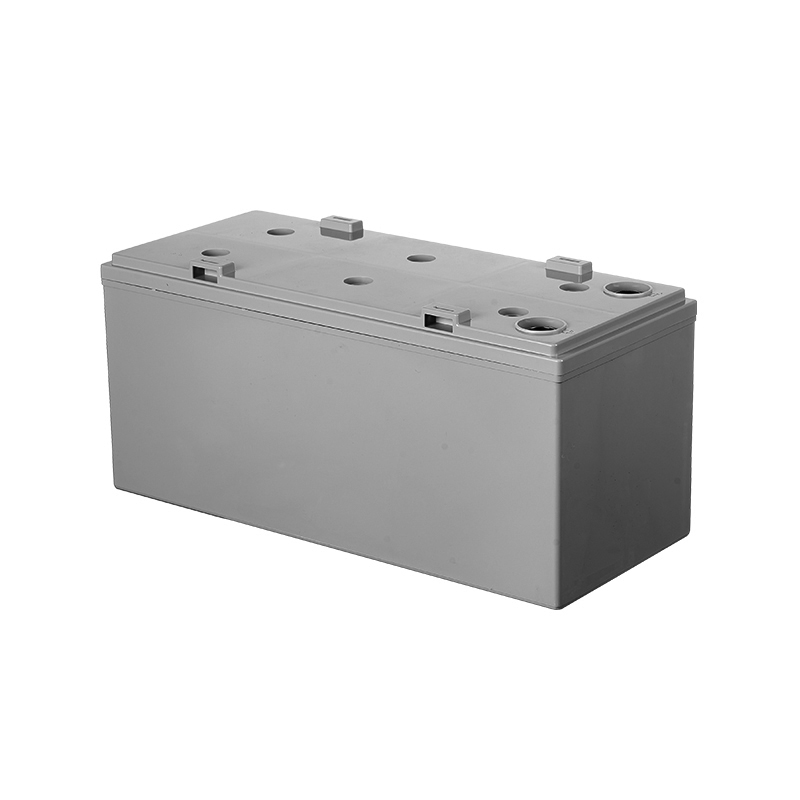

Gray 12V high-rate lead acid battery plastic case with molded top terminals and durable container design for energy storage applications
  • Product Specifications

    Item External Dimensions Internal Effective Dimensions
    High-Power 12V 85AH 287.8*174*216 mm 163*44*195 mm
    High-Power 12V 100AH 331*174*218mm 163*51*195mm
    High-Power 12V 150AH 471*174*235mm 161*74*207.5mm
    High-Power 12V 200AH 502*211*237mm 160.5*97.3*208.5mm
