DP60 Main Panel for AIDC High-Rate Lithium Battery Systems (Busbar Panel / BMS Panel)

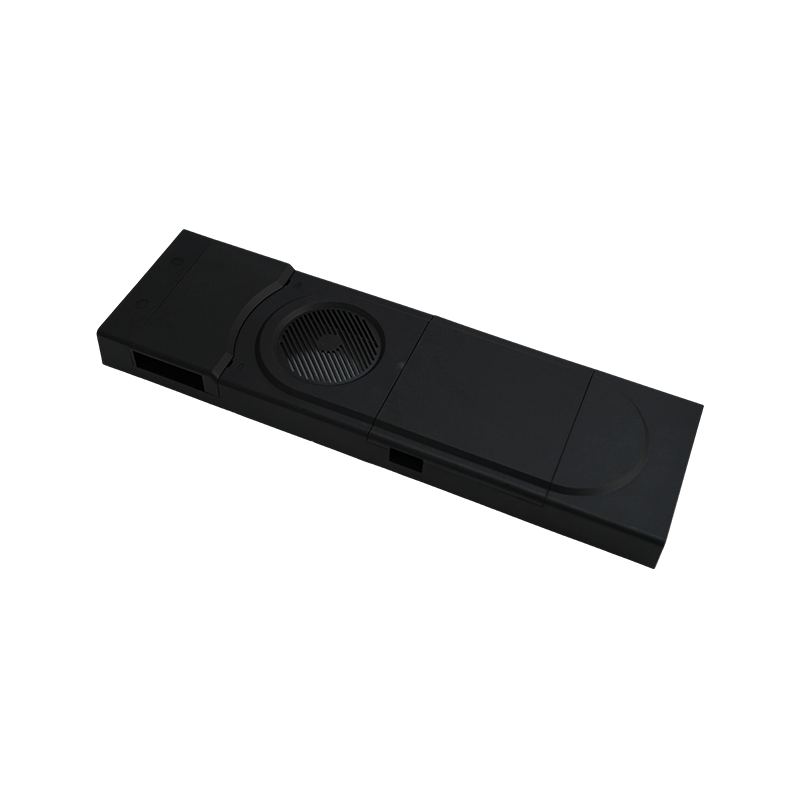

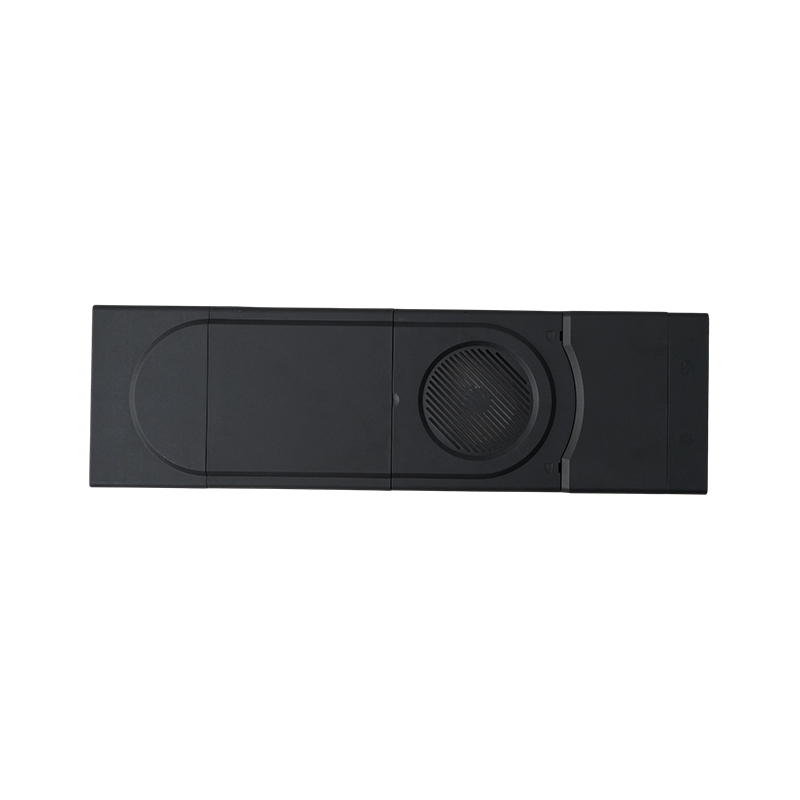

DP60 Main Panel Assembly (Including Busbar Panel and BMS Panel)
The DP60 main panel assembly, including the busbar panel and BMS panel, is designed for the DP60 AIDC high-rate liquid-cooled energy storage cabinet, rated at 630 kW per cabinet. It is a complete set of plastic panel components for the high-voltage busbar distribution box and belongs to the precision injection-molded panel category for integrated energy storage systems.

The complete assembly consists of three components: the main panel, the busbar insulation and protection panel, and the BMS control panel. Together, these components provide high-voltage isolation, busbar protection, protection for the main BMS control compartment, and human-machine interaction. They are standard components of the DP60 high-voltage box for computing infrastructure energy storage.

Specifically developed for the high-voltage busbar distribution box of the AIDC DP60 high-rate energy storage system, the assembly is precision injection-molded from modified, UL 94 V-0-rated, halogen-free plastic materials.

The assembly includes three sub-panels:

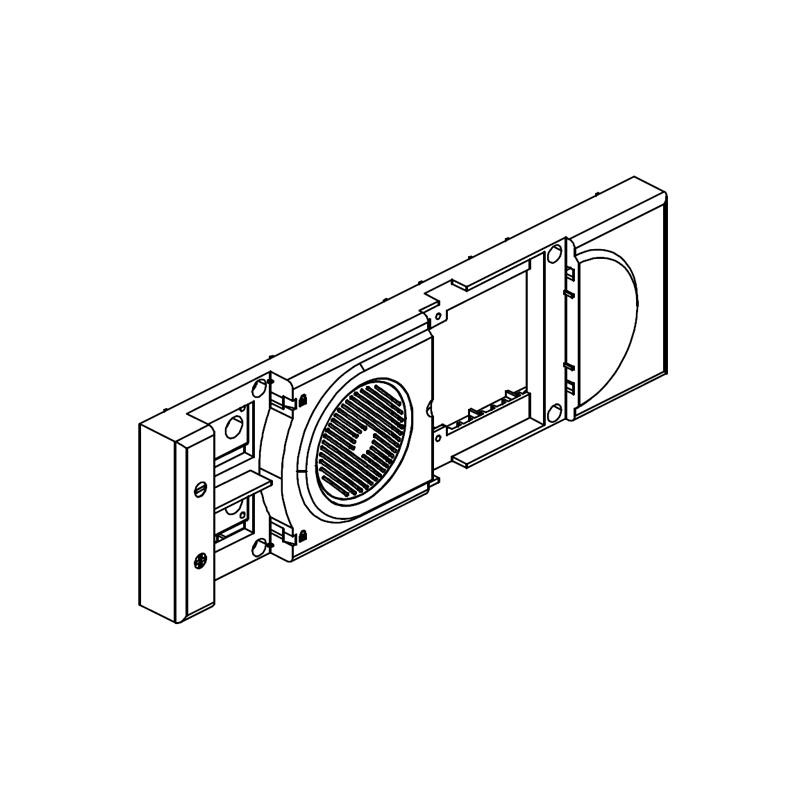

1. DP60 Main Panel: The main front panel of the high-voltage box, serving as the exterior frame of the complete unit. It integrates the emergency stop switch, indicator lights, and sealing structures and acts as the primary protective barrier for the high-voltage box.

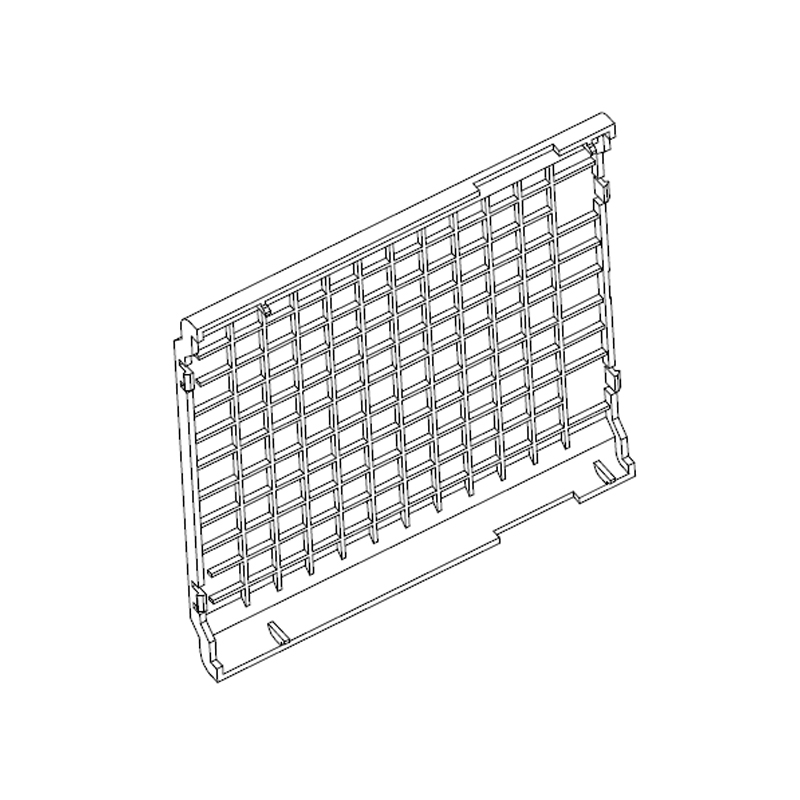

2. Busbar Panel (Busbar Insulation and Protection Panel): A dedicated insulating cover for the high-voltage busbar distribution area. It isolates high-power busbars and helps prevent short circuits caused by foreign objects.

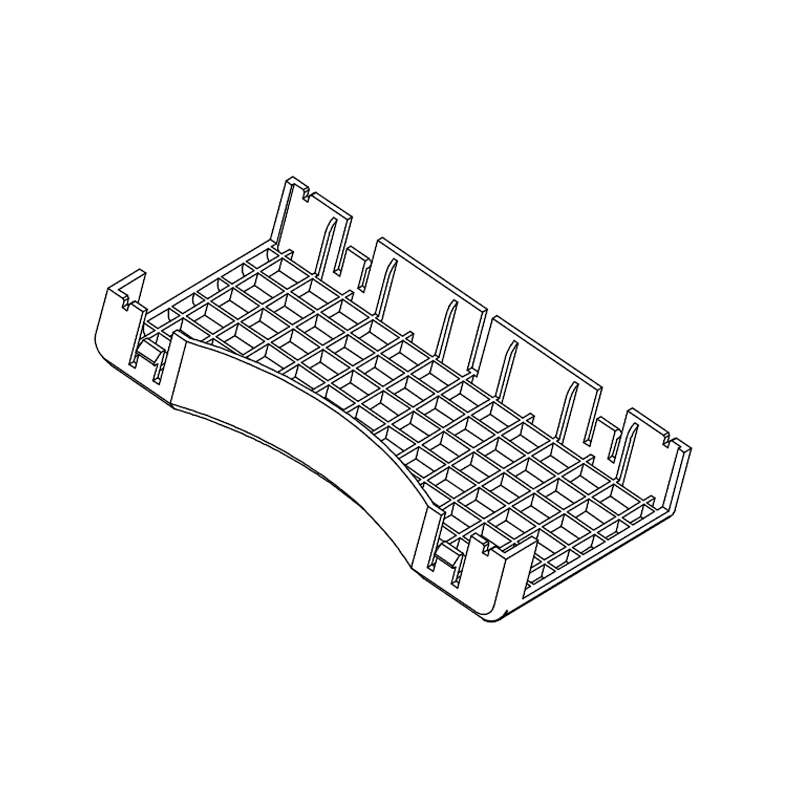

3. BMS Panel: An independent cover for the main BMS control compartment, protecting the BMS mainboard, cell-monitoring circuits, and communication interfaces while providing separate protection for the low-voltage control area.

Key Features

1. Integrated Design with Physical Separation of High- and Low-Voltage Areas: The main panel, BMS panel, and busbar panel form a coordinated assembly that physically separates high-voltage and low-voltage areas, reducing structural development costs for complete-system integrators.

2. Safety Compliance for AIDC Data Centers: Halogen-free, low-smoke materials help reduce the release of hazardous smoke during a fire. The assembly is intended for applications requiring compliance with NFPA 75 data center fire safety requirements and integration into systems evaluated through UL 9540A thermal runaway fire propagation testing.

3. High Electrical Insulation Performance for the High-Voltage Busbar Panel: High-CTI, glass-fiber-reinforced materials provide electrical insulation and thermal resistance under temperature increases associated with high instantaneous currents in the DP60 high-rate energy storage system, helping mitigate tracking and leakage risks.

4. Modular, Removable Structure: The BMS panel and busbar panel can be removed and installed independently, simplifying on-site maintenance. Servicing can be performed without removing the entire main panel assembly.
