2V OPzV Gel Tubular Lead Acid Energy Storage Battery

The 2V OPzV Gel Tubular Lead Acid Battery Case is designed for high-capacity, high-reliability energy storage batteries. Made from high-strength ABS/PP engineering plastic with advanced sealing technology, it offers superior impact resistance, corrosion resistance, and reliable sealing compared to ordinary battery cases. Precision mold manufacturing ensures stable dimensions and strong structure, suitable for deep-cycle energy storage systems, communication base stations, UPS, and industrial backup power applications.
The optimized design protects internal tubular plates and gel electrolyte from mechanical damage, providing longer service life and higher safety while reducing maintenance costs.

Differentiated Features
1. High-Strength Case Material
Made from high-strength ABS/PP plastic for superior impact resistance and corrosion protection, ensuring long-term reliability.
2. Reliable Sealing Performance
Special gel battery sealing technology prevents electrolyte leakage and ensures safe operation under float and cyclic charge conditions.
3. Structural Design Protects Battery Components
Carefully engineered structure protects tubular plates and separators from mechanical damage during transport and installation.
4. Full-Series Compatibility
Designed to accommodate various capacities of the GFMJ(OPzV) series, supporting diverse energy storage system requirements.
5. Long-Term Safety and Stability
The case maintains high safety and structural stability under deep cycle, high temperature, and long-term float charge conditions, extending overall battery life.

Applications
Deep-cycle energy storage systems (solar, wind, etc.)
Hybrid power systems in off-grid or unstable grid areas
Long-term float backup for communication hubs and base stations
UPS backup power and emergency lighting
Industrial energy storage and backup power systems

2V OPzV Gel Tubular Lead Acid Energy Storage Battery

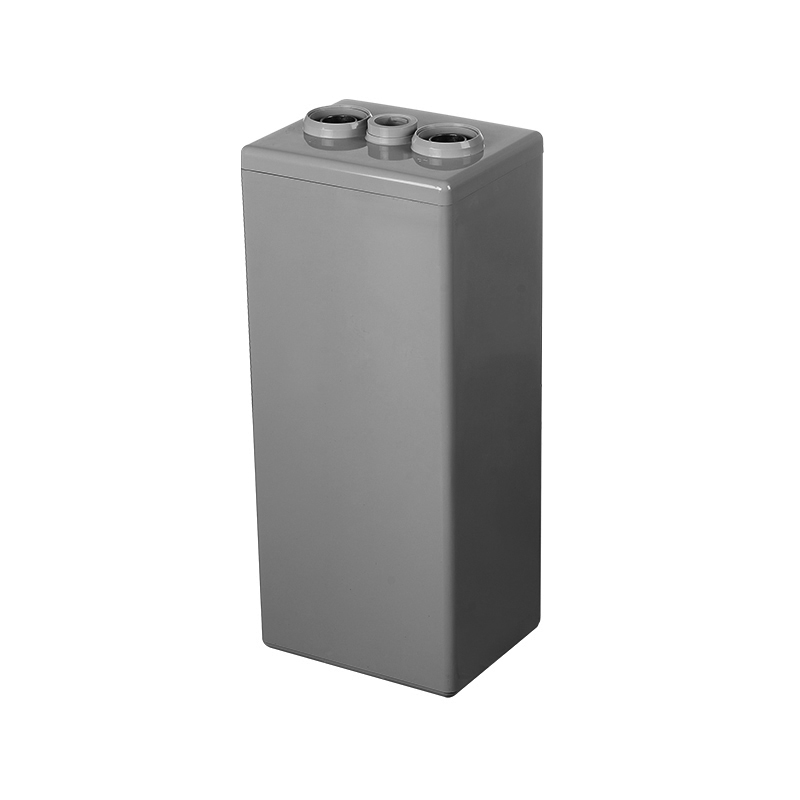

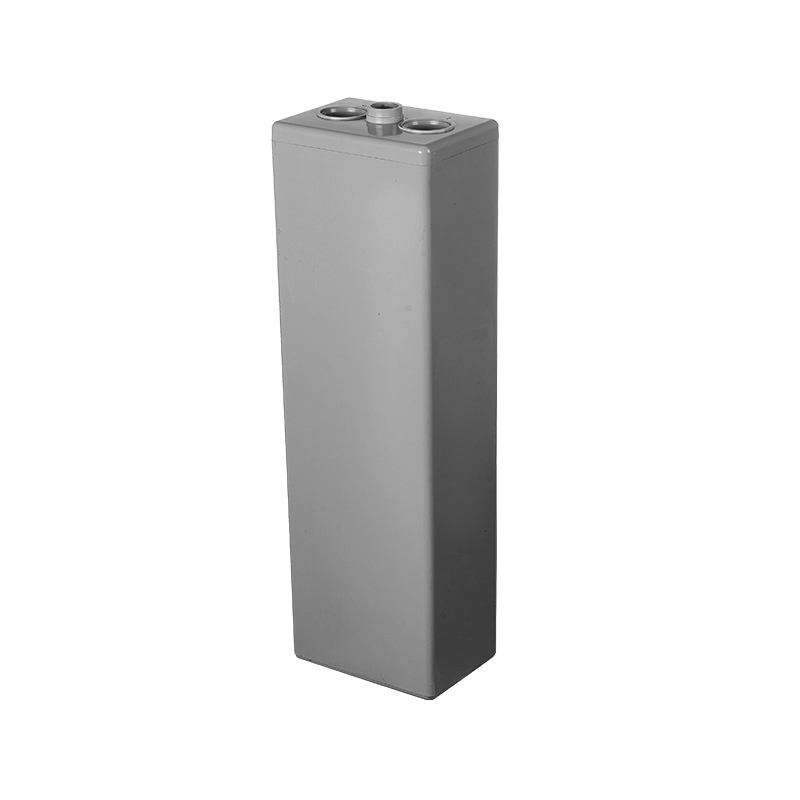

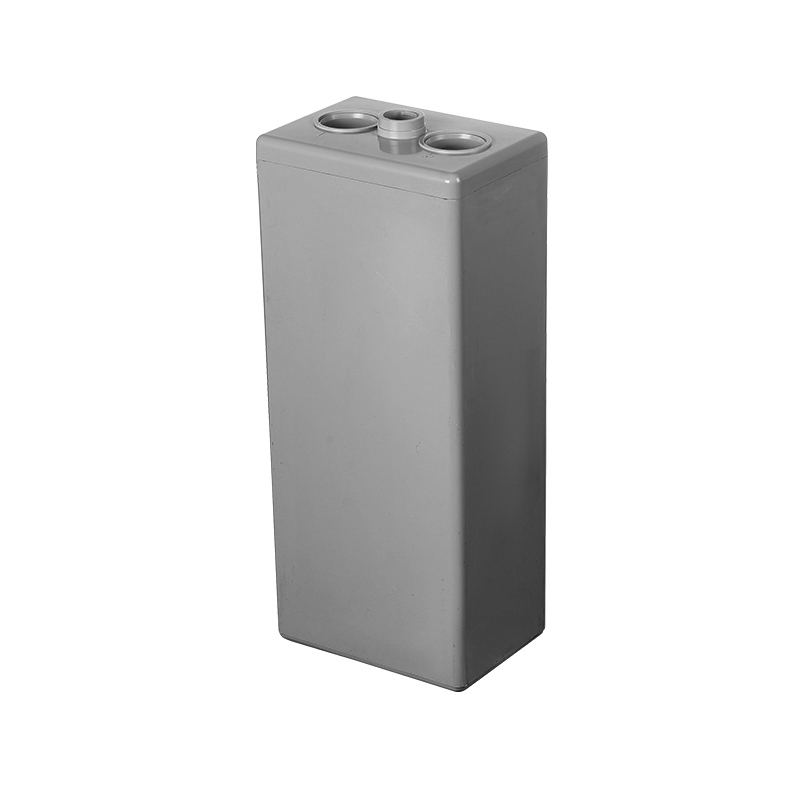

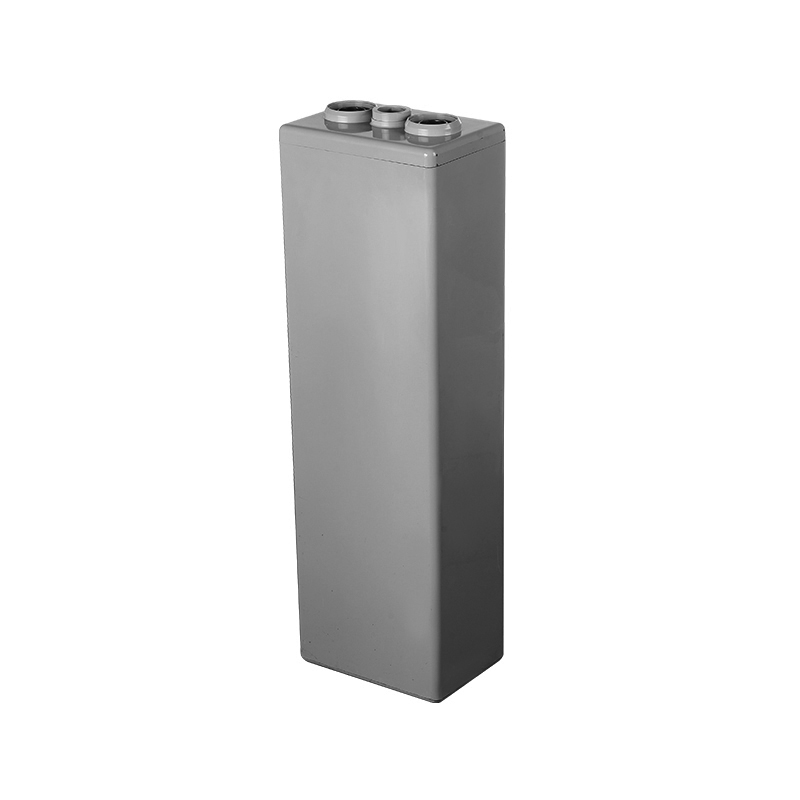

2V OPzV gel tubular lead acid battery case with tall gray plastic housing and molded top terminals for energy storage battery systems
  • Product Specifications

    Item External Dimensions Internal grid effective dimensions

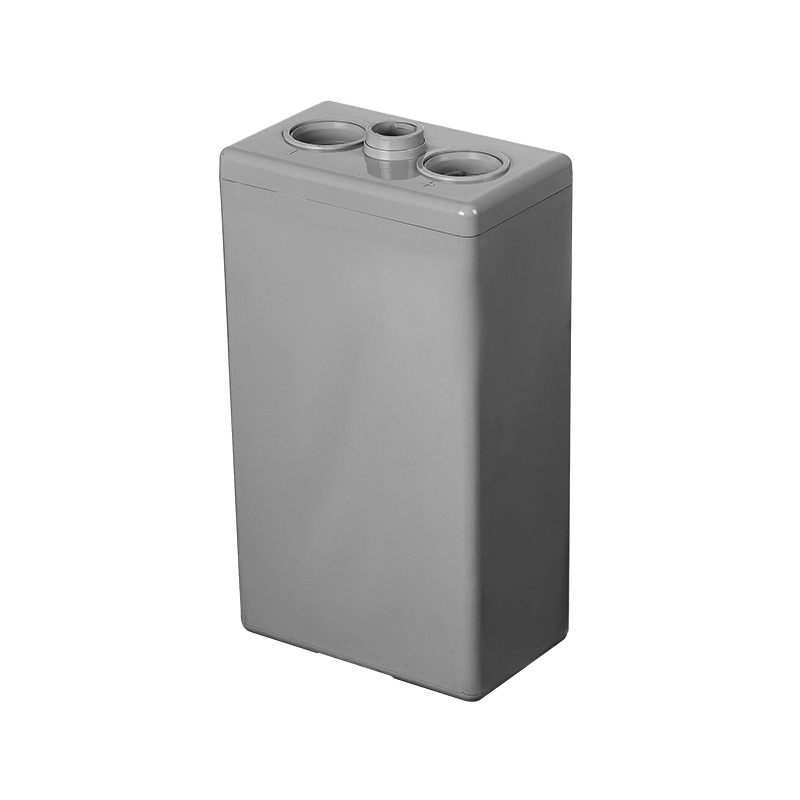

    OPZV 2V 200AH 206*103*370.5 mm 193*90*323.5 mm

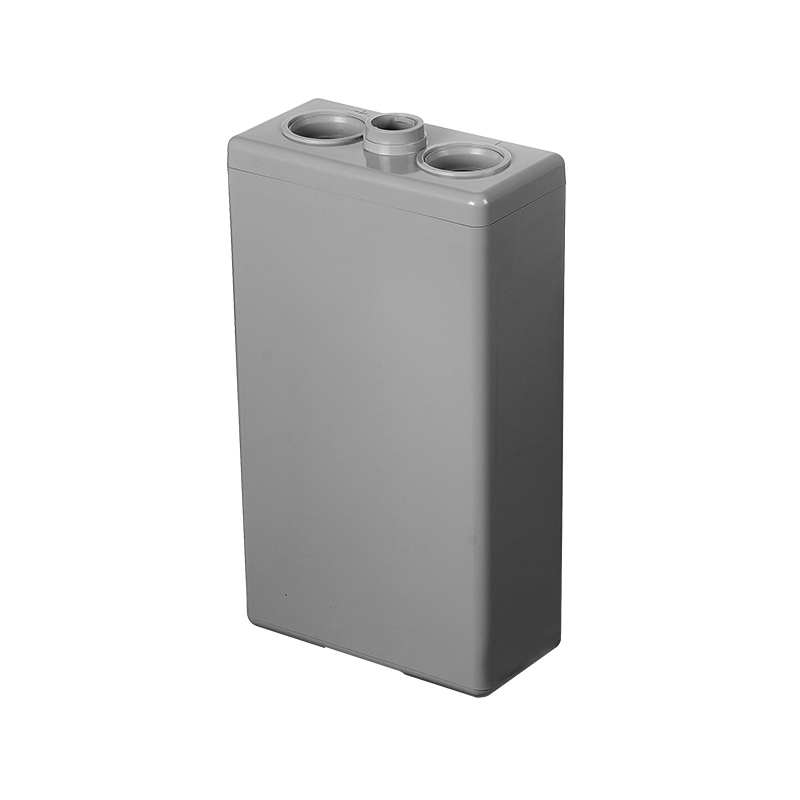

    OPZV 2V 250AH 206*124*371 mm 193.5*111.5*324.5 mm

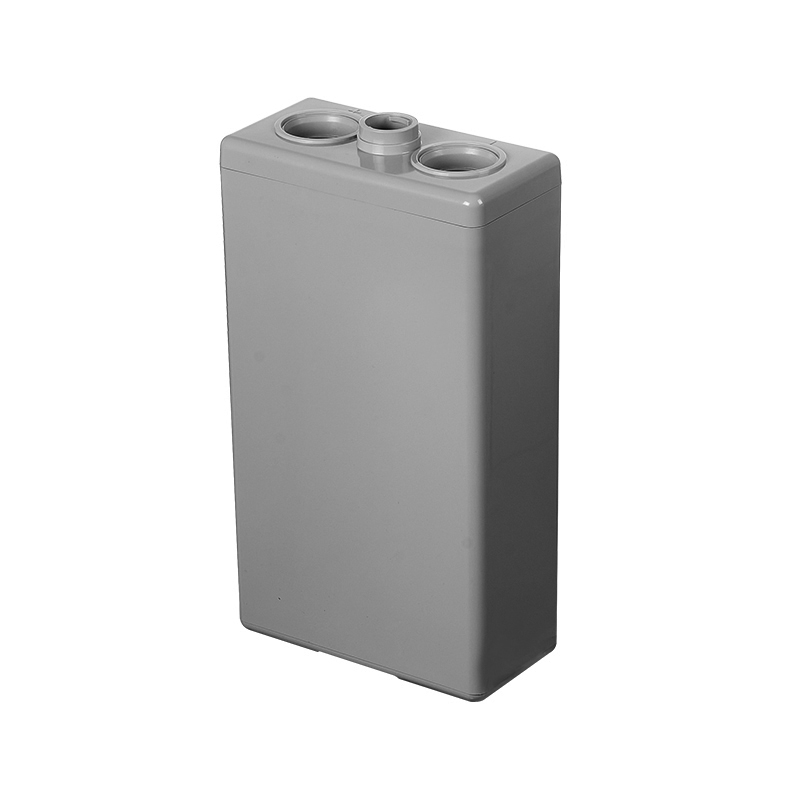

    OPZV 2V 300AH 206*145*370.5 mm 193.5*132.5*324.5 mm
    OPZV 2V 350AH 206*124*509 mm 193.5*111.5*441.5 mm
    OPZV 2V 420AH 206*145*509.5 mm 193.5*132.5*437.5 mm

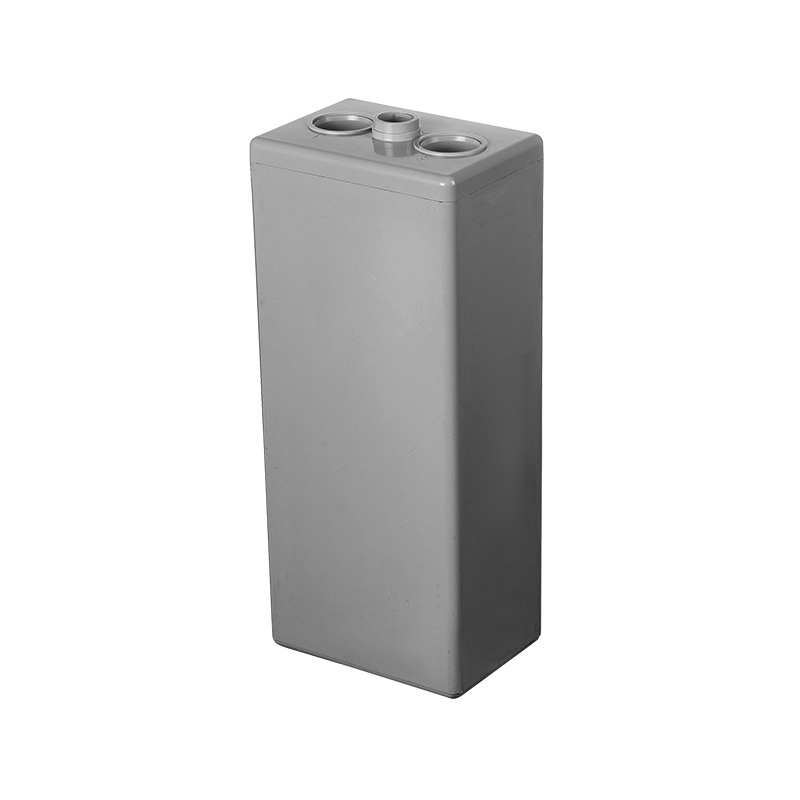

    OPZV 2V 490AH 206*166*509.5 mm 193.5*153*438 mm
    OPZV 2V 600AH 206*145*661.5 mm 193.5*132*614.5 mm

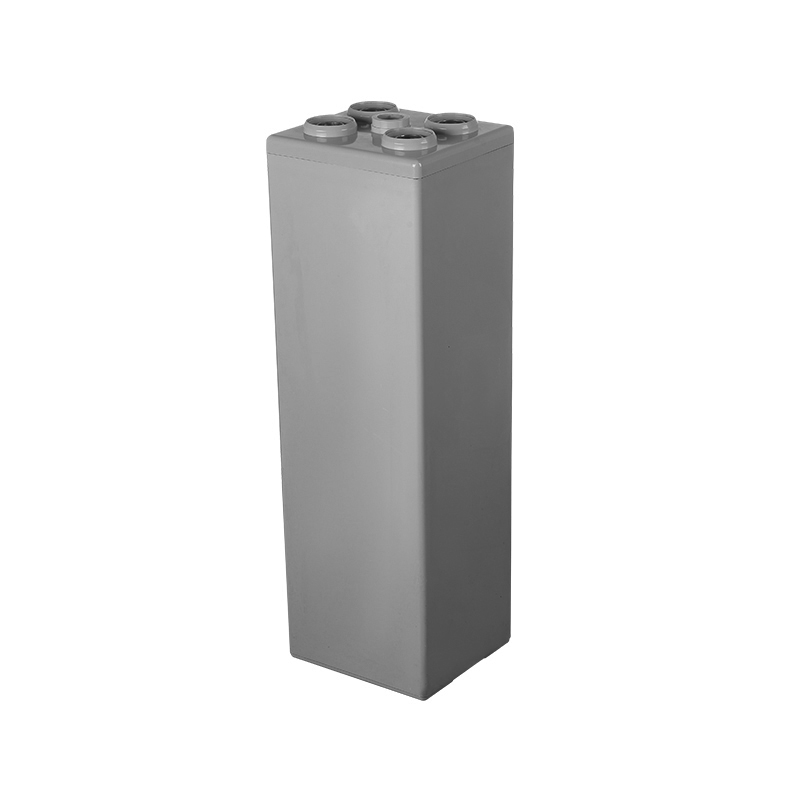

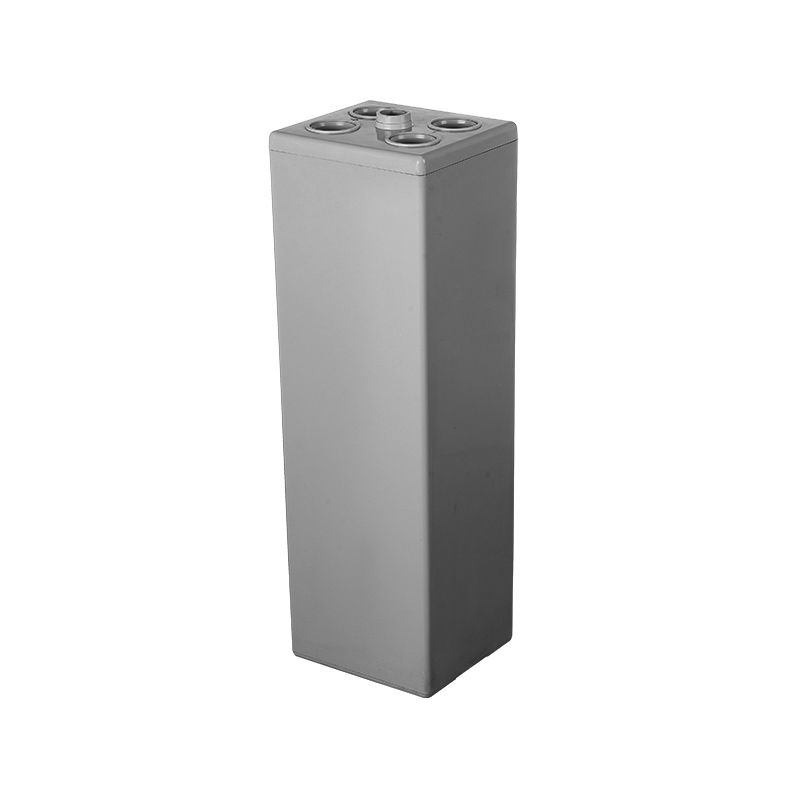

    OPZV 2V 800AH 210*191*662 mm 193.5*174.5*596 mm
    OPZV 2V 1000AH 233*210*665.5 mm 217*193.5*594.5 mm
    Colloid 300 206*145*368.5 mm 193.5*132.5*324.5 mm
    Colloid 420 206*145*508.5 mm 193.5*132.5*437.5 mm
    Colloid 490 206*166*508.5 mm 193.5*153*438 mm
    Colloid 600 206*145*660.5 mm 193.5*132*614.5 mm
    Colloid 800 210*191*661 mm 193.5*174.5*596 mm
    Colloid 1000 233*210*664.5 mm 217*193.5*594.5 mm

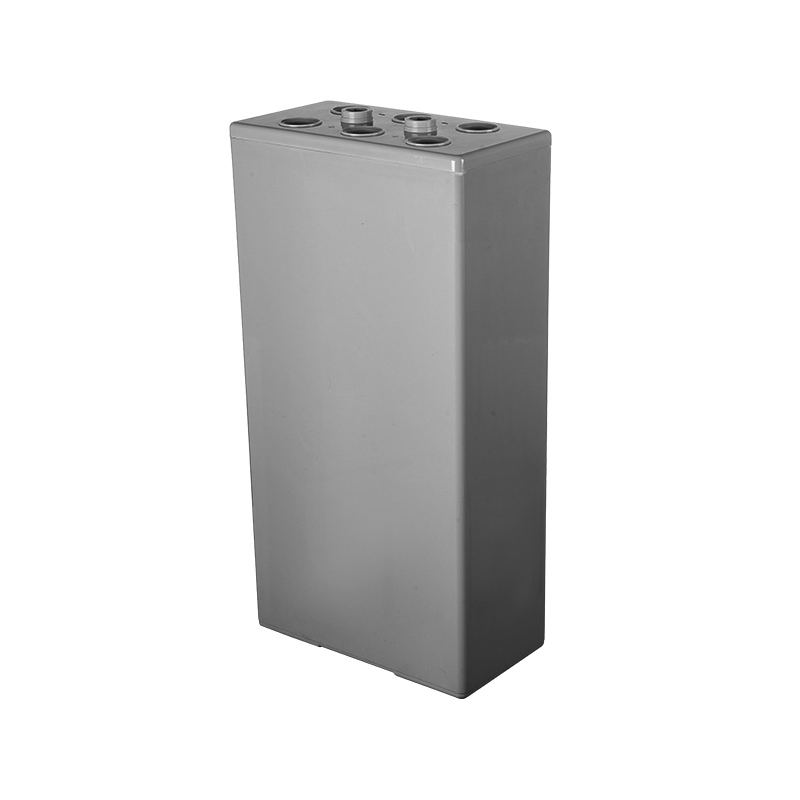

    Colloid 2000 399*214*787 mm 379*194*713 mm
