2V Lead-Lined High-Capacity Sealed Battery Case

The 2V Lead-Lined High-Capacity Sealed Lead Acid Battery Case is designed for high-reliability, large-capacity energy storage batteries. Unlike conventional battery cases, this product significantly enhances structural stability, sealing performance, and terminal protection. With high-strength engineering plastic and a lead-lined terminal design, it ensures long-term operational safety and minimizes damage risks during transport and installation.
The unique single-cell design supports a full range of models, offering more flexible options and improving assembly efficiency. Mature manufacturing processes and strict quality control guarantee long-lasting durability, corrosion resistance, and extended battery lifespan.

Differentiated Features
1. Lead-Lined Terminal Design
Compared with standard terminals, the lead-lined structure prevents deformation, short circuits, and poor contact, ensuring reliable conductivity.
2. High-Strength Durable Material
Made from high-strength ABS/PP engineering plastic, the case is more impact-resistant and suitable for harsh operating environments than ordinary plastic cases.
3. Superior Sealing Reliability
Special combination maze terminal sealing and gel sealing technology prevent electrolyte leakage, even under high temperature and high humidity conditions.
4. Optimized Structure for Full Model Range
Well-designed single-cell structure is compatible with different capacities and specifications, providing more flexible options for energy storage systems.
5. Long-Term Safety and Stability
Material and structural optimizations ensure that the case remains safe and stable during transport, installation, and long-term operation, reducing maintenance and replacement costs.

Applications
Communication and Signal System Backup Power
Power System and Nuclear Power Plant Backup Power
Solar and Wind Energy Storage Systems
Military and Marine Equipment Backup Power
UPS Backup Power and Emergency Lighting Systems

2V Lead-Lined High-Capacity Sealed Battery Case
Gray 2V lead-lined high-capacity sealed battery plastic box with molded top terminals for UPS battery and energy storage applications
  • Product Specifications

    Item External Dimensions Internal Grid Effective Dimensions

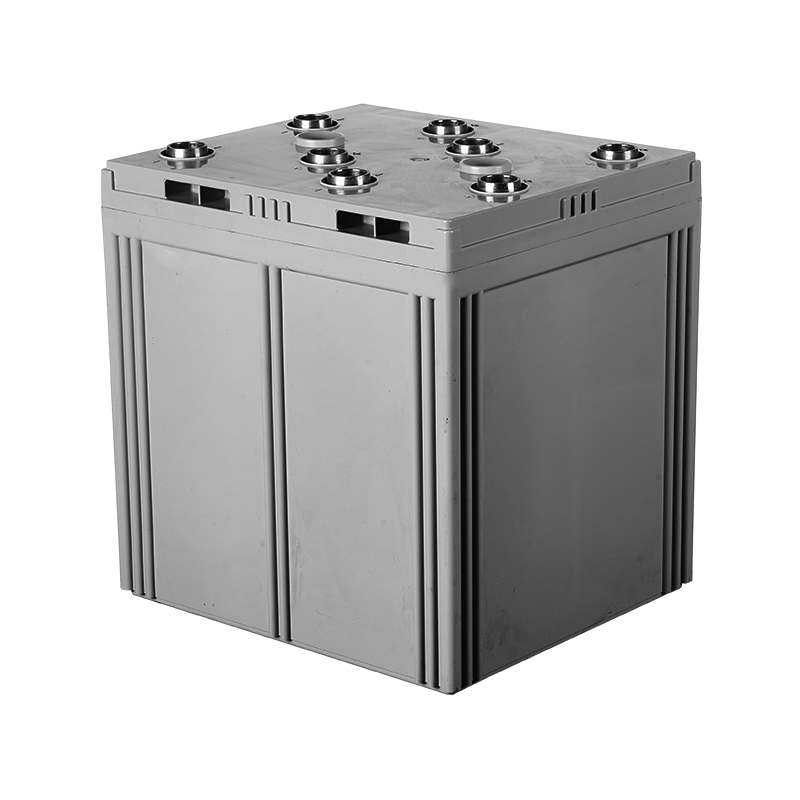

    2V 1600AH 363*318*370mm 166*145*315mm

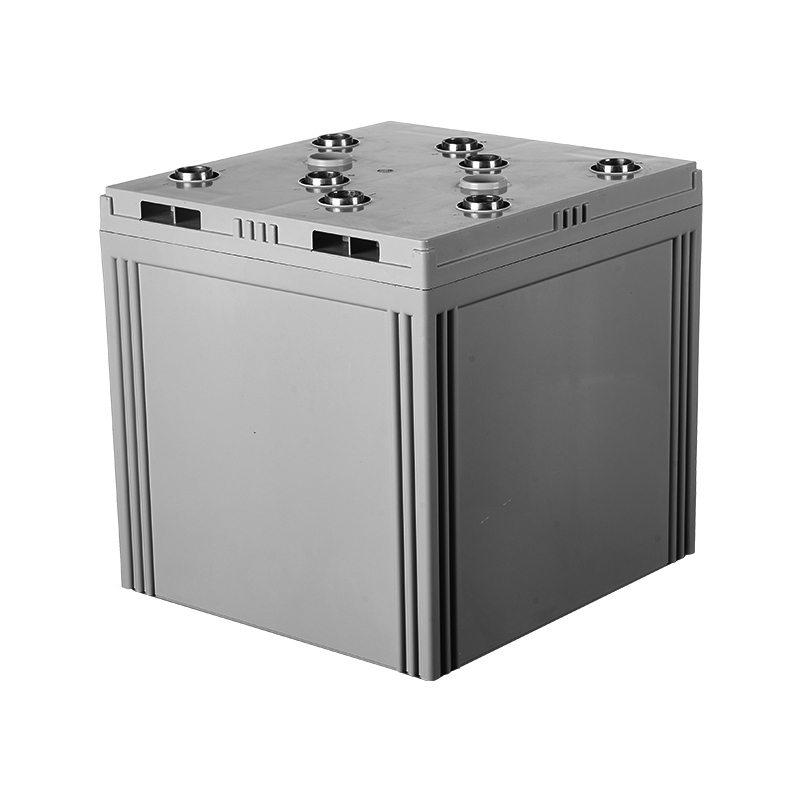

    2V 2000AH 363*385*370mm 166*178*315mm

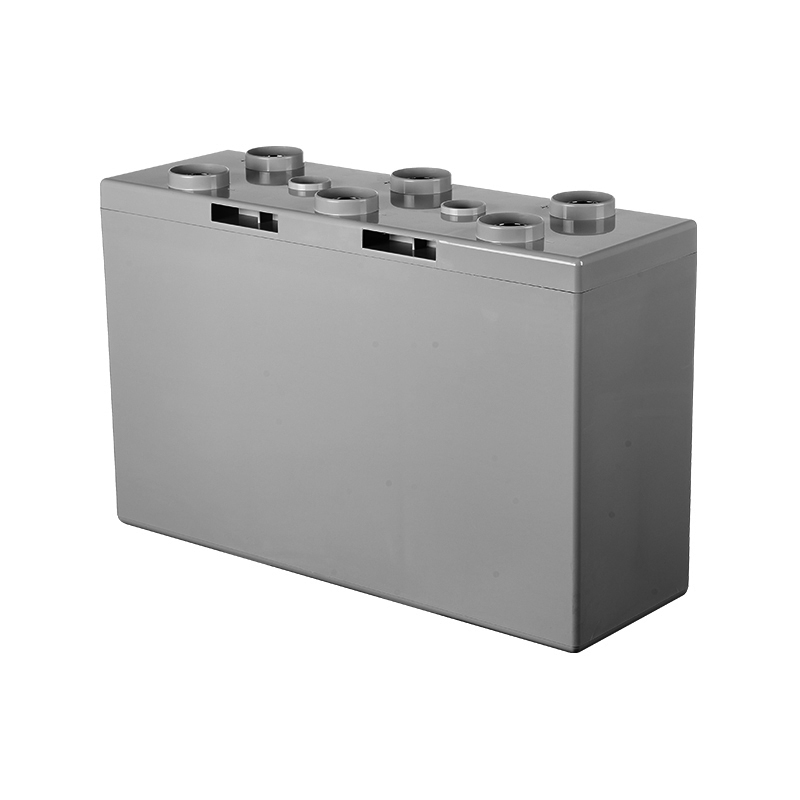

    2V E Single Cell 1500AH 551*181*347mm 175.5*165.5*309mm
    2V E-Cell 2000AH 555*207*367.5mm 190*177*323mm
