12V Slim Front Terminal Energy Storage Lead Acid Battery Case

The 12V Slim Front Terminal Battery Case is designed for high-density energy storage applications and cabinet installations. Unlike conventional battery cases, it offers space-saving, optimized cooling, and convenient installation advantages. Made of high-strength ABS engineering plastic with specialized sealing technology, and featuring low-resistance copper-core front terminals, the case ensures long-term stable and safe operation.
The slim design fits 19-inch and 23-inch cabinets with a length-to-width ratio of 3.75~5.00, improving heat dissipation and airflow efficiency. It is ideal for UPS, emergency lighting, and outdoor integrated cabinet applications, providing easy installation and maintenance while extending overall system lifespan.

Differentiated Features
1. Cabinet-Optimized Slim Design
Fits 19-inch and 23-inch cabinets, saving space and optimizing system layout.
2. Excellent Cooling Performance
Slim dimensions and optimized L/W ratio improve airflow, reducing heat buildup.
3. Convenient Front Terminal Installation
Low-resistance copper-core terminals provide reliable contact and ease of installation/maintenance.
4. High-Strength Materials and Sealing
High-strength ABS case combined with specialized sealing prevents leakage and mechanical damage.
5. High Gas Recombination Efficiency
High-pressure absorbed glass fiber technology ensures gas recombination efficiency over 99%, guaranteeing safe operation.
6. Long Service Life
Designed for 12-year service life, combined with multi-alloy plate grids to extend overall battery lifespan.

Applications
Macro Base Stations
Outdoor Integrated Cabinets
UPS and Emergency Lighting Systems

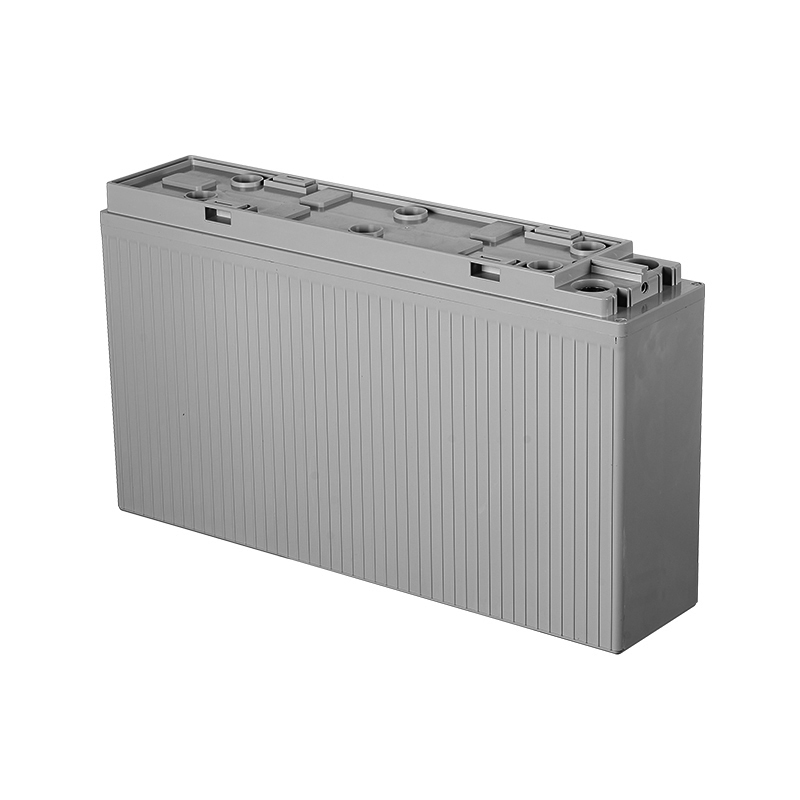

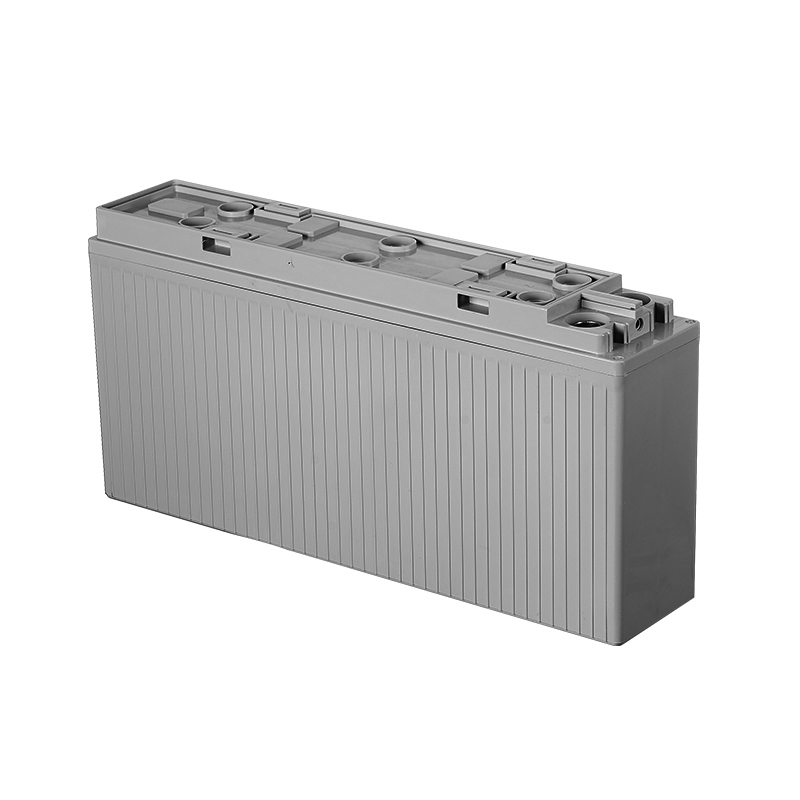

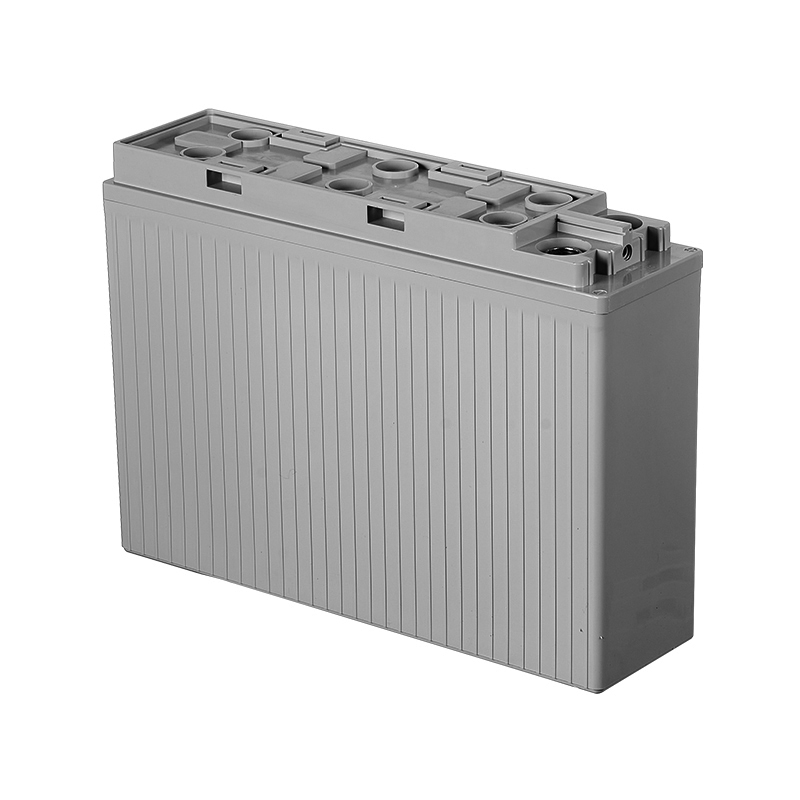

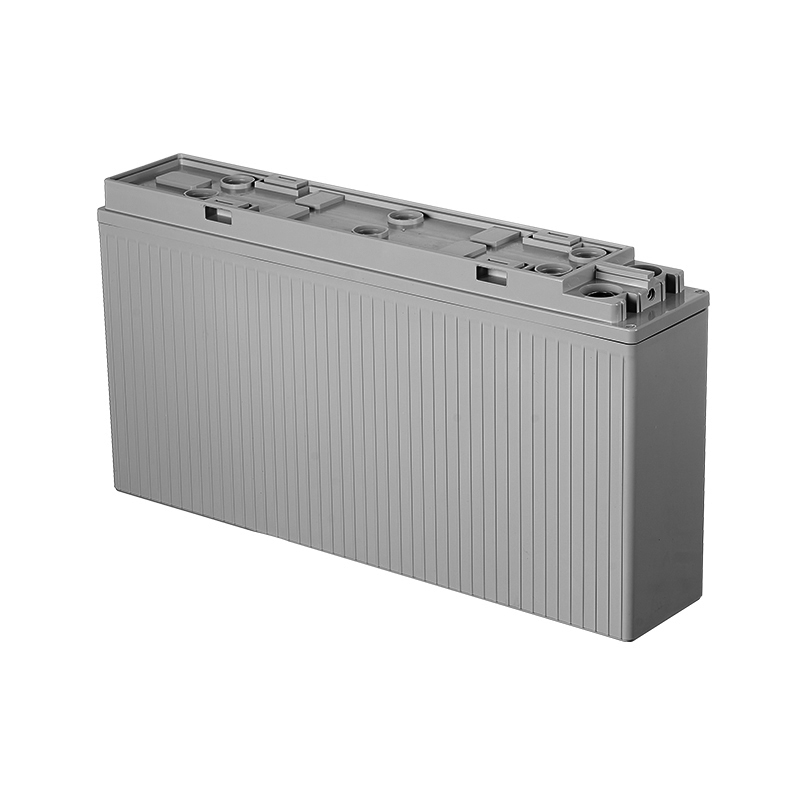

12V Slim Front Terminal Energy Storage Lead Acid Battery Case
12V slim front terminal energy storage lead acid battery case with gray ribbed plastic housing for UPS systems and stationary backup power
  • Product Specifications

    Item External Dimensions Internal Grid Effective Dimensions

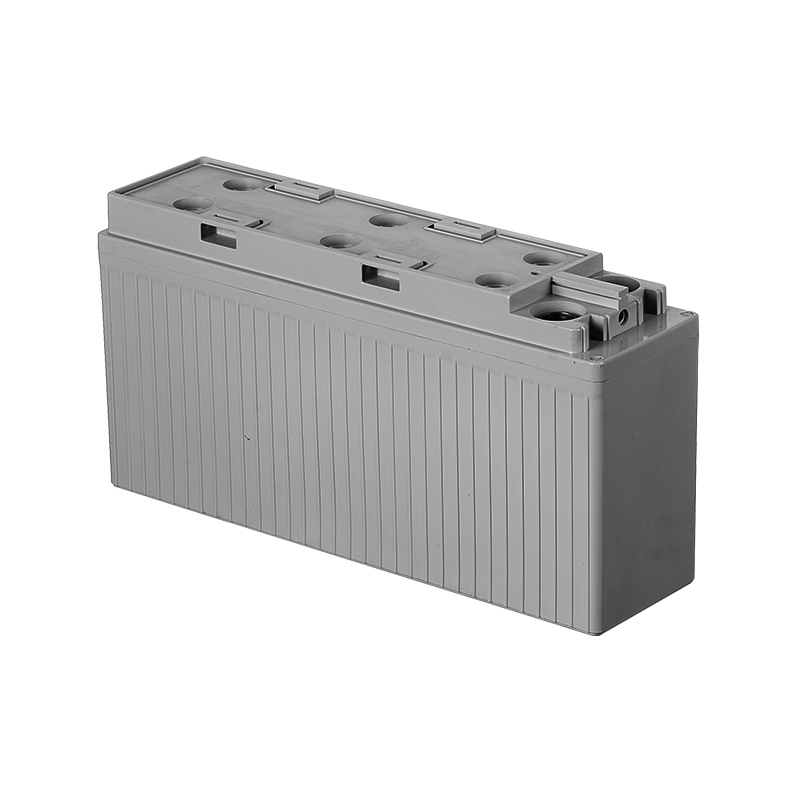

    6-FMX-B-50 390*105*200.5 mm 125*44.5*166 mm

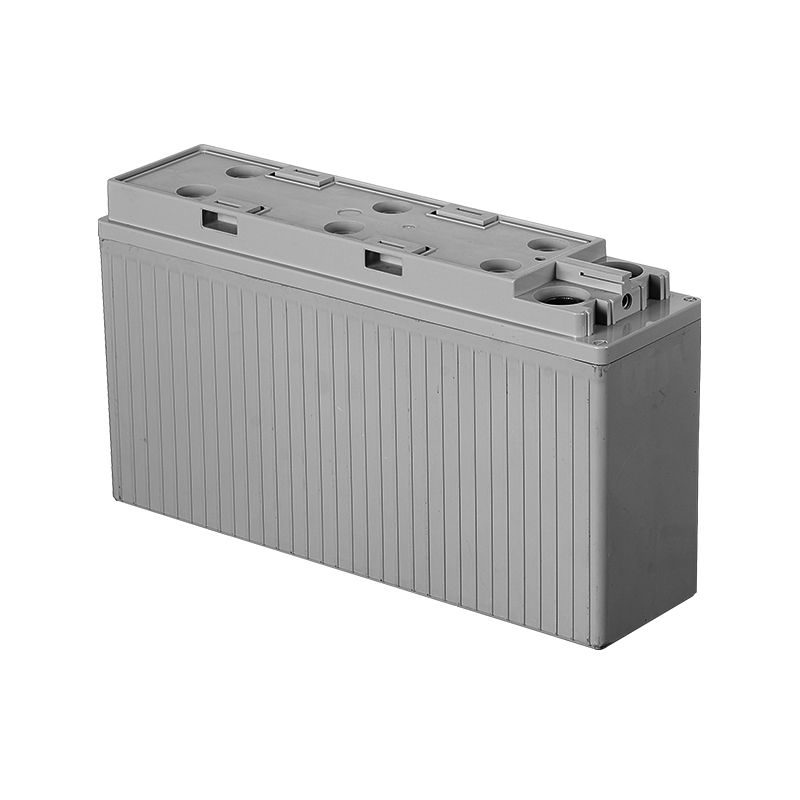

    6-FMX-B-65 390*105*200 mm 126*44.5*185.5 mm

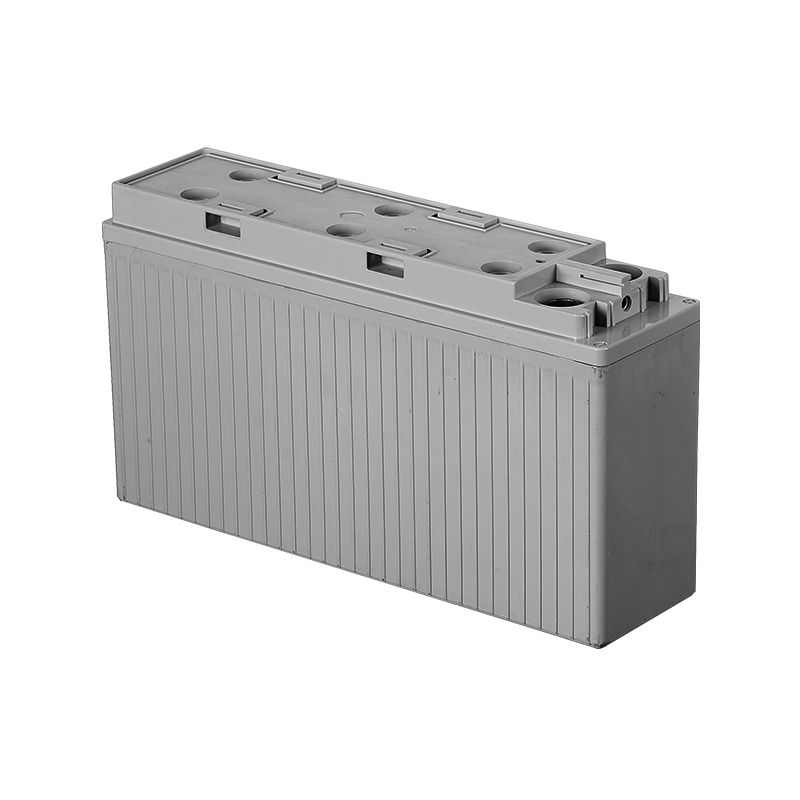

    6-FMX-B-80 395*105*270.5 mm 126*44.5*235 mm

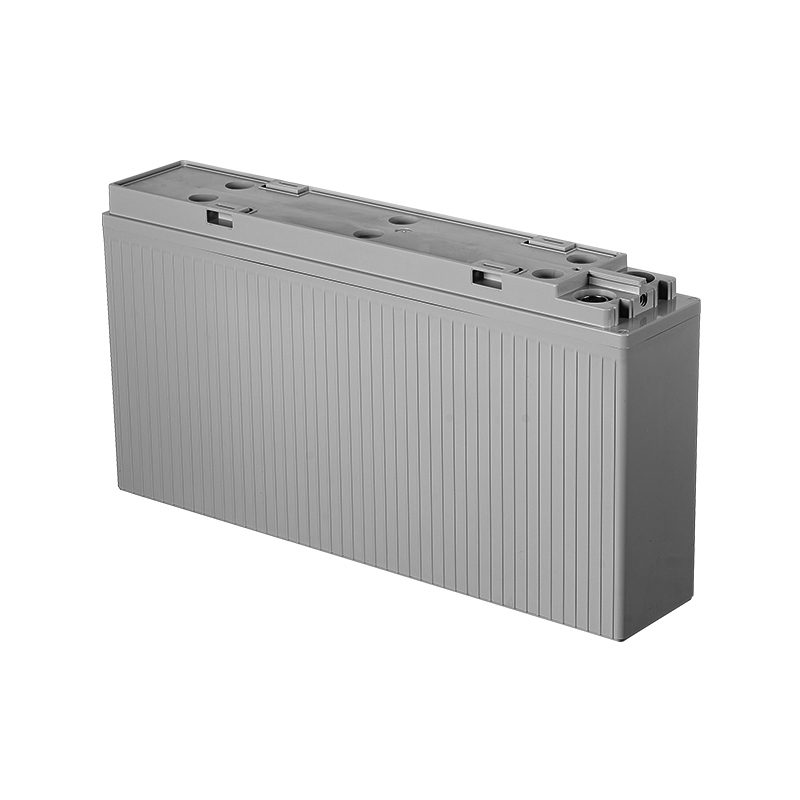

    6-FMX-B-100A 519*110*254 mm 167.5*47*219.5 mm

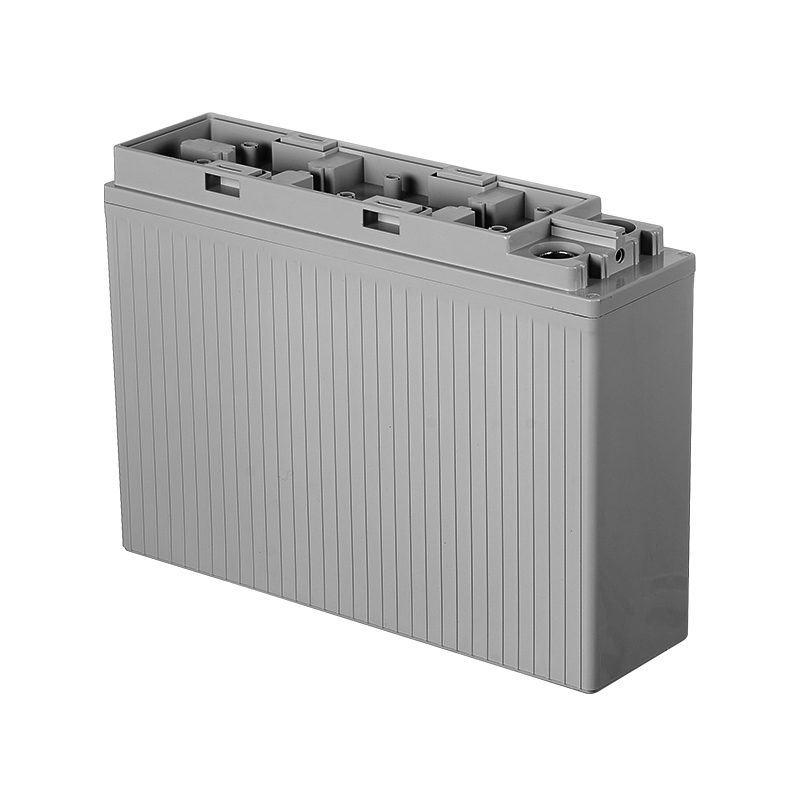

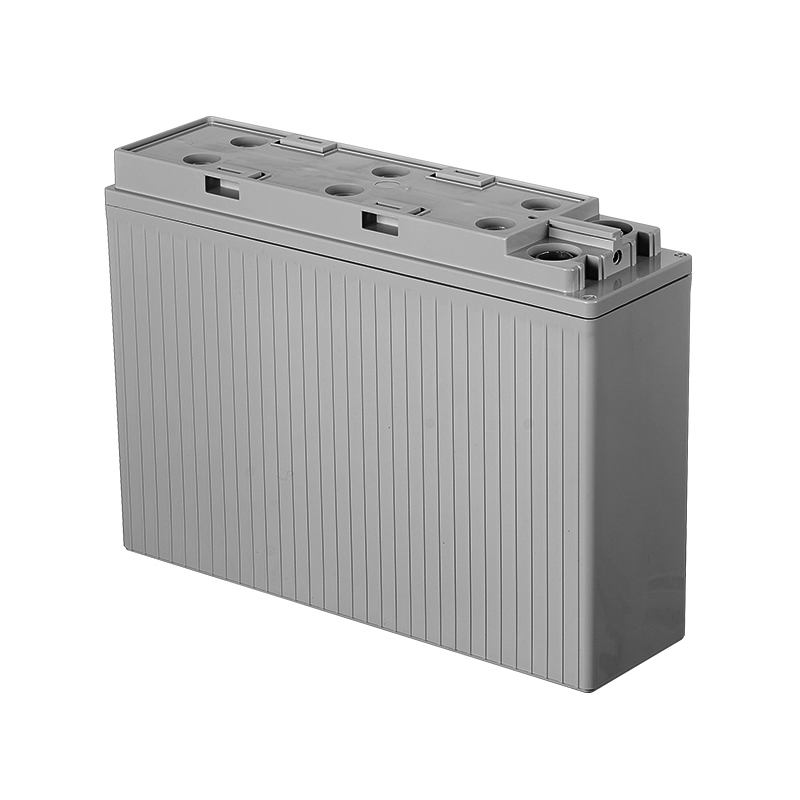

    6-FMX-B-100B 395*110*285.5 mm 126.5*47*250.5 mm
    6-FMX-B-100B (Rubber Cap Version) 395*110*285.5mm 126.5*47*250.5mm

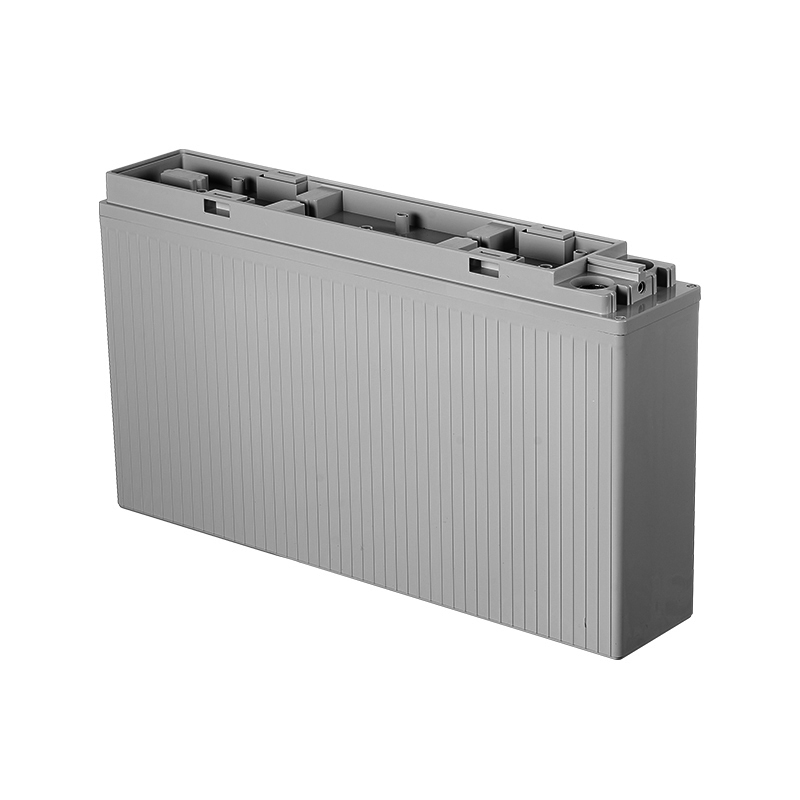

    6-FMX-B-150B 549*110*310 mm 177.5*47*275.5 mm
    6-FMX-B-150B (Rubber Cap Version) 549*110*310mm 177.5*47*275.5mm

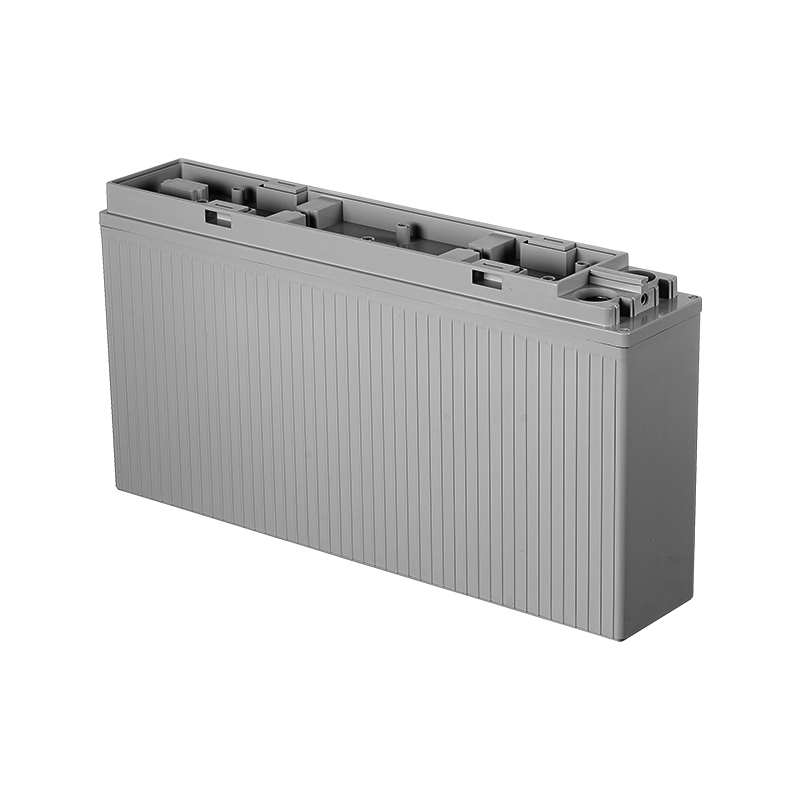

    6-FMX-B-150D 549*110*288.5 mm 177.5*47*253 mm
    6-FMX-B-150D (Rubber Cap Model) 549*110*288.5mm 177.5*47*253mm

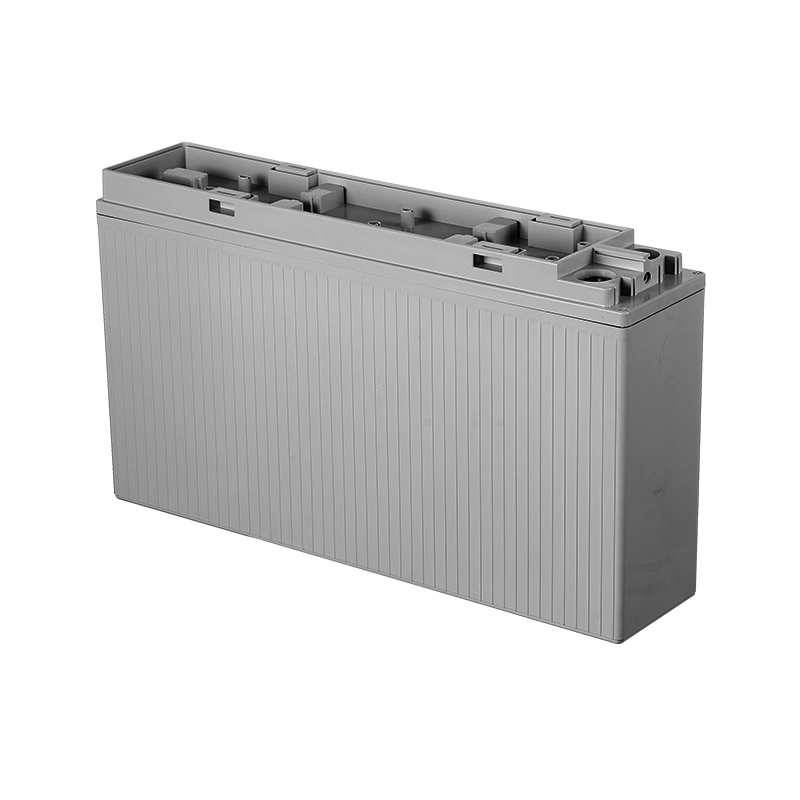

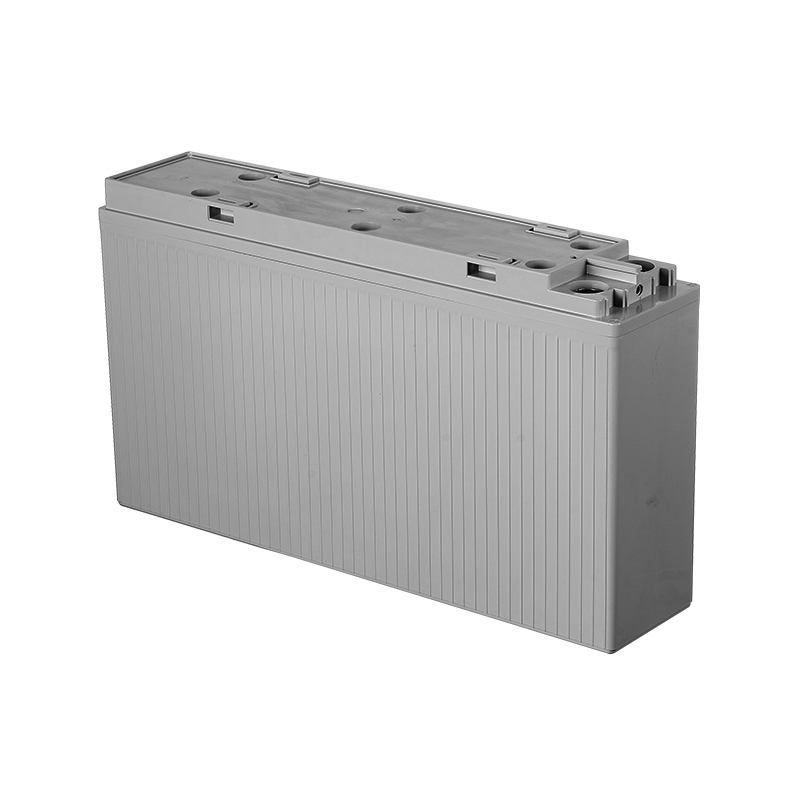

    6-FMX-B-180 559*125*314.5 mm 181*51*277.5 mm
    6-FMX-B-180 (Rubber Cap Model) 559*125*314.5mm 181*51*277.5mm
