12V Sealed Lead Acid Energy Storage Battery (Plastic Case)

The 12V Lead Acid Energy Storage Battery (Plastic Case) series is designed for reliable power storage and backup applications. Covering a wide capacity range from 7Ah to 200Ah, this series is suitable for energy storage systems, UPS backup, solar power systems, emergency lighting, telecom equipment, and industrial power solutions.

Manufactured with high-quality lead plates and a durable plastic housing, these batteries offer stable performance, long service life, and safe operation under various working conditions. Multiple terminal and handle options are available to meet different installation and usage requirements.

Key Features

Wide capacity range: 7Ah–200Ah

Stable 12V output for energy storage and backup systems

Durable plastic case with good insulation and impact resistance

Low self-discharge rate

Reliable cycle performance

Maintenance-friendly design

Optional handle and terminal configurations

Suitable for indoor and outdoor installations

Available Models

This 12V battery series includes, but is not limited to, the following models:

12V 7Ah

12V 17Ah

12V 24Ah (Handle Type / Vertical Type)

12V 33Ah

12V 38Ah (Lead Terminal / Copper Terminal)

12V 55Ah (Copper Terminal)

12V 65Ah / 12V 65-2 / Easte 12V65

12V 70Ah (Type A / Type B)

12V 100Ah (Multiple Structures)

12V 120Ah (Lead Terminal / Copper Terminal)

12V 150Ah

12V 200Ah

Custom specifications are available upon request.

Technical Specifications

Nominal Voltage: 12V

Capacity Range: 7Ah – 200Ah

Battery Type: Lead Acid Energy Storage Battery

Case Material: High-strength Plastic

Terminal Type: Lead / Copper (optional)

Installation Orientation: Horizontal or Vertical (model dependent)

Operating Temperature:

Charge: 0°C to 40°C

Discharge: -15°C to 50°C

Application Type: Energy Storage / Backup Power

Applications

Solar energy storage systems

UPS and backup power supply

Inverter systems

Emergency lighting

Communication and telecom equipment

Security and alarm systems

Industrial power storage

Renewable energy systems

Advantages

Consistent power output and reliable backup performance

Strong adaptability for different energy storage systems

Durable housing for long-term use

Multiple capacity options to reduce system design costs

Suitable for OEM and bulk supply

Packaging & Delivery

Standard export packaging

Palletized or customized packing available

Bulk orders supported

Stable production capacity for continuous supply

OEM & Customization

OEM and ODM services are supported, including:

Logo printing

Label design

Terminal customization

Capacity and structure optimization

Quality & Compliance

Strict quality control during production

Factory inspection before shipment

Suitable for international market supply

12V Sealed Lead Acid Energy Storage Battery (Plastic Case)

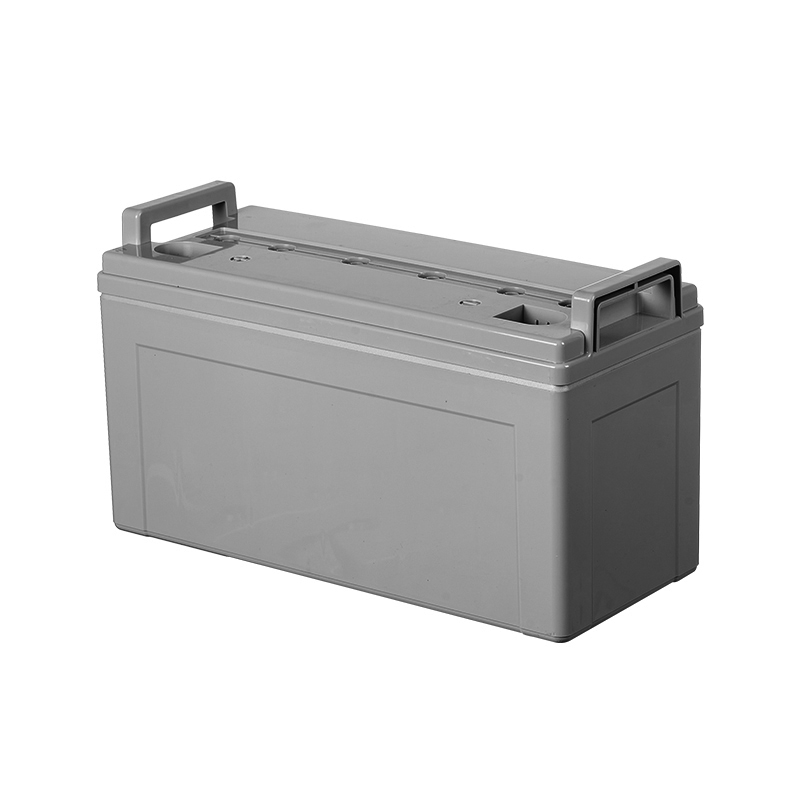

12V sealed lead acid battery plastic case with gray molded housing and recessed top cover design for energy storage and backup power applications
  • Product Specifications

    Item External Dimensions Internal Grid Effective Dimensions

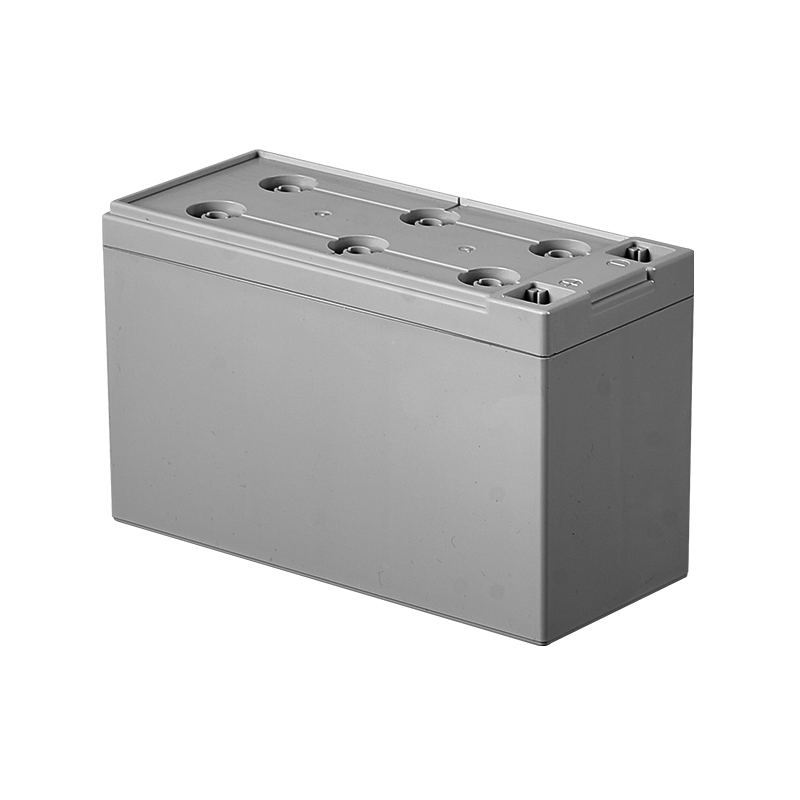

    12V 7AH 151.5*65.5*94 mm 47.7*29.2*84 mm

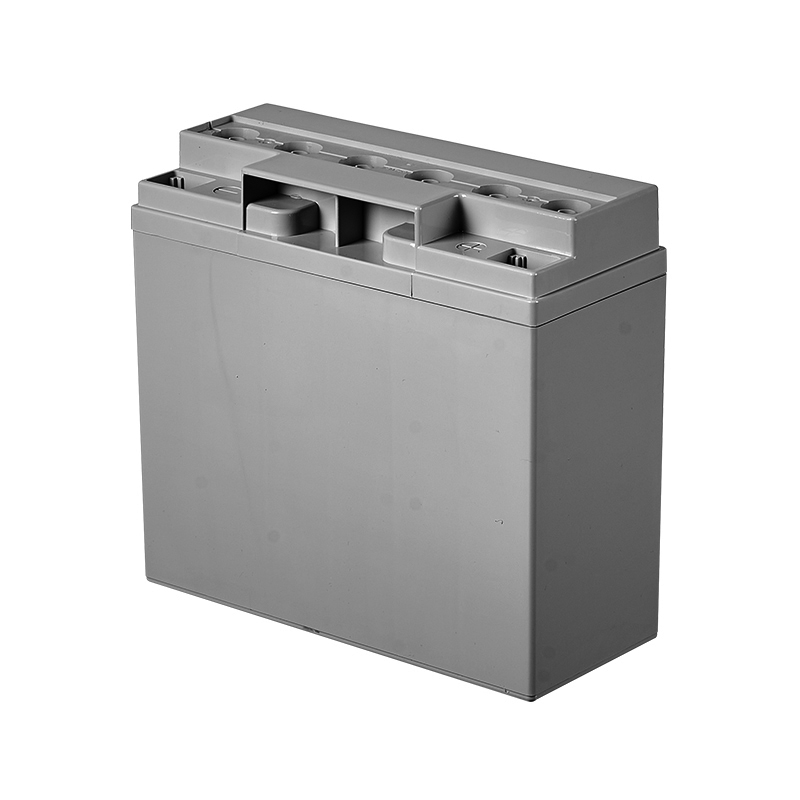

    12V 17AH 181*76*169mm 71*28*139mm

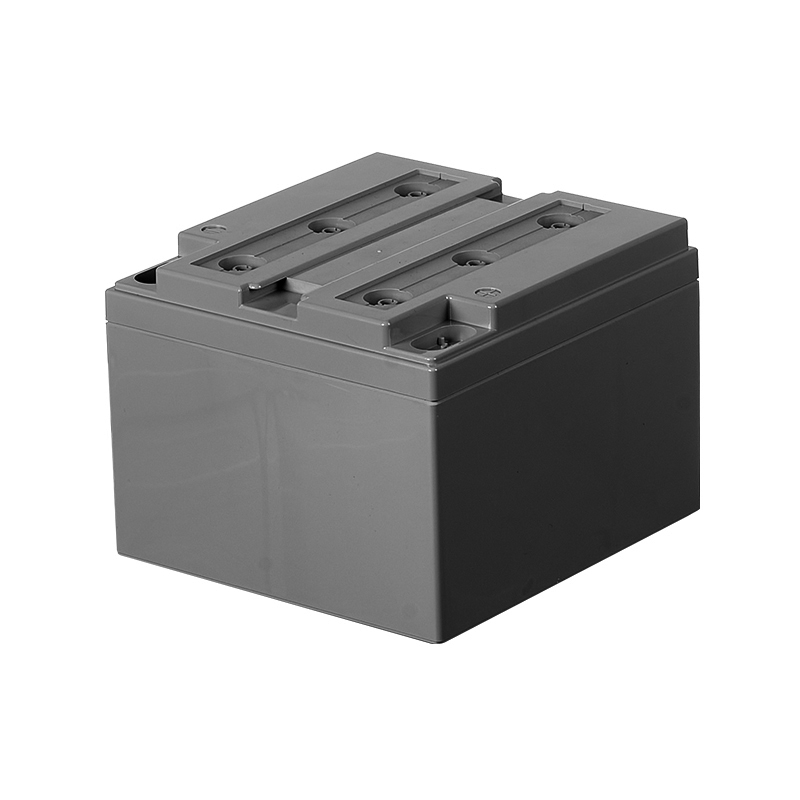

    12V24B-2 (Handle Version) 174*165*126mm 79*55*104mm

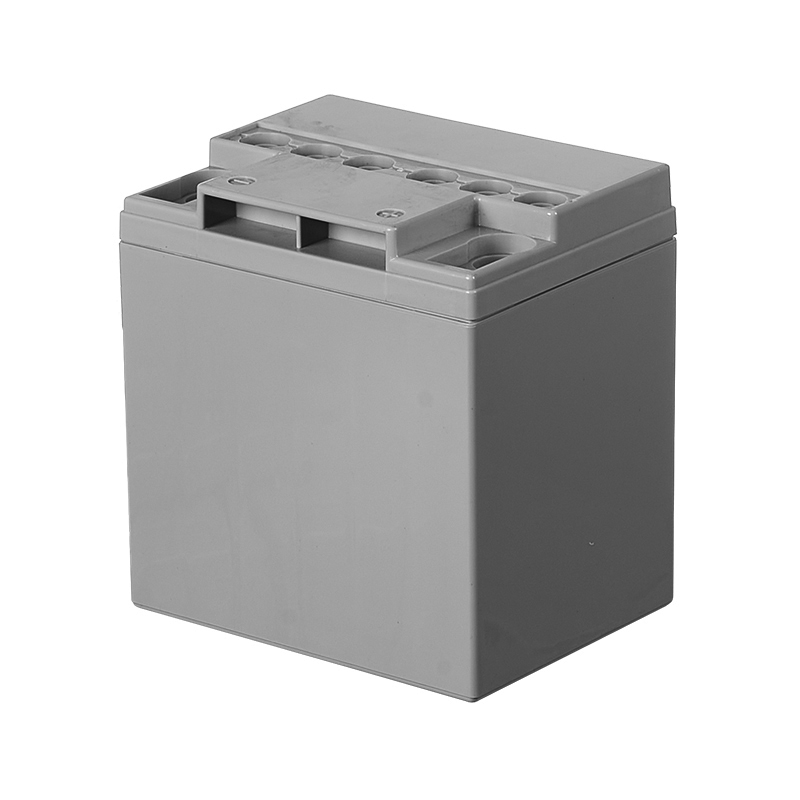

    12V24 (Vertical) 165*125.5*172.5mm 119*25*149mm

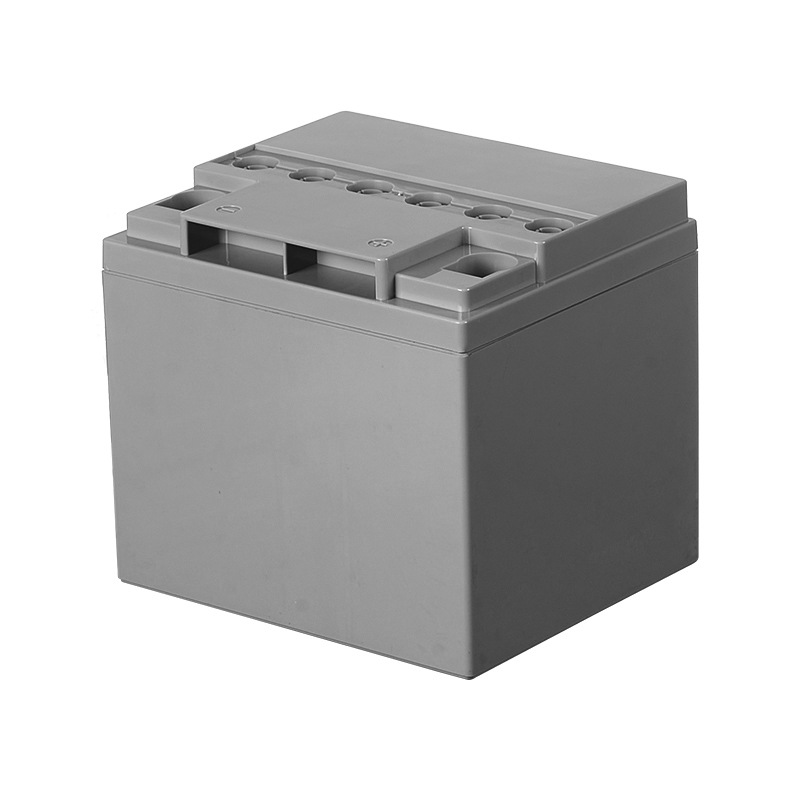

    12V38 (Lead-Acid) 196*164*174mm 156*30*149mm

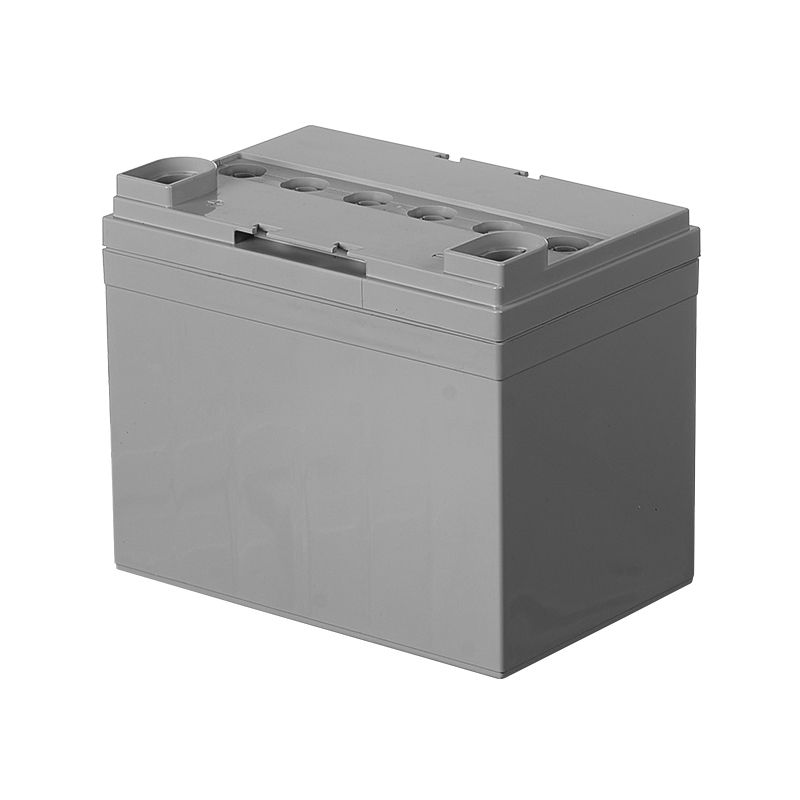

    12V33AH 194*131*163mm 126*30*147mm
    12V38 (Copper Edition) 196*164*174mm 156*30*149mm

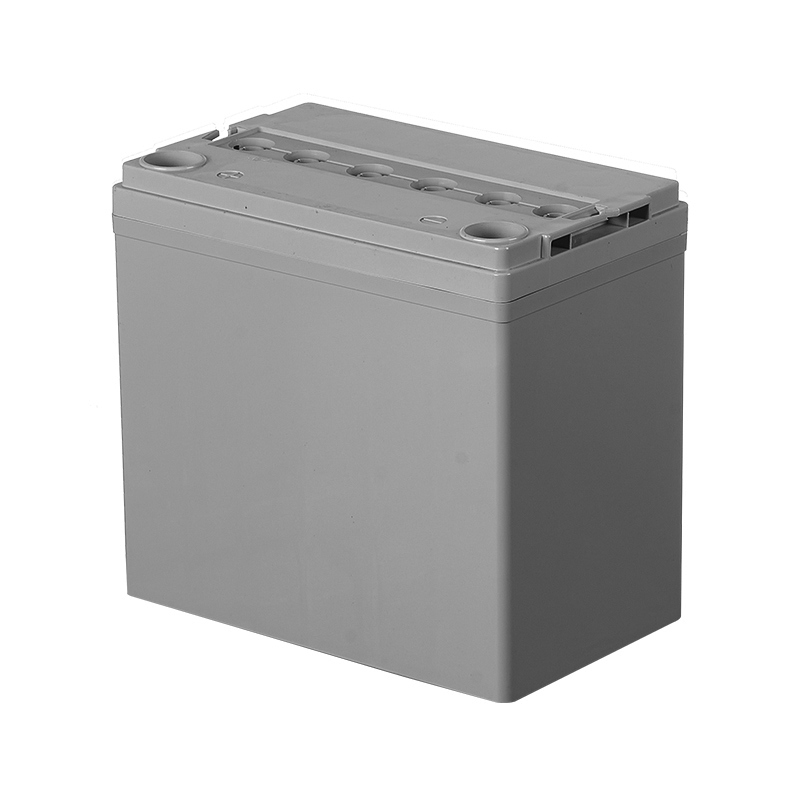

    12V55 (Copper Edition) 218*138*211mm 129*35*194mm

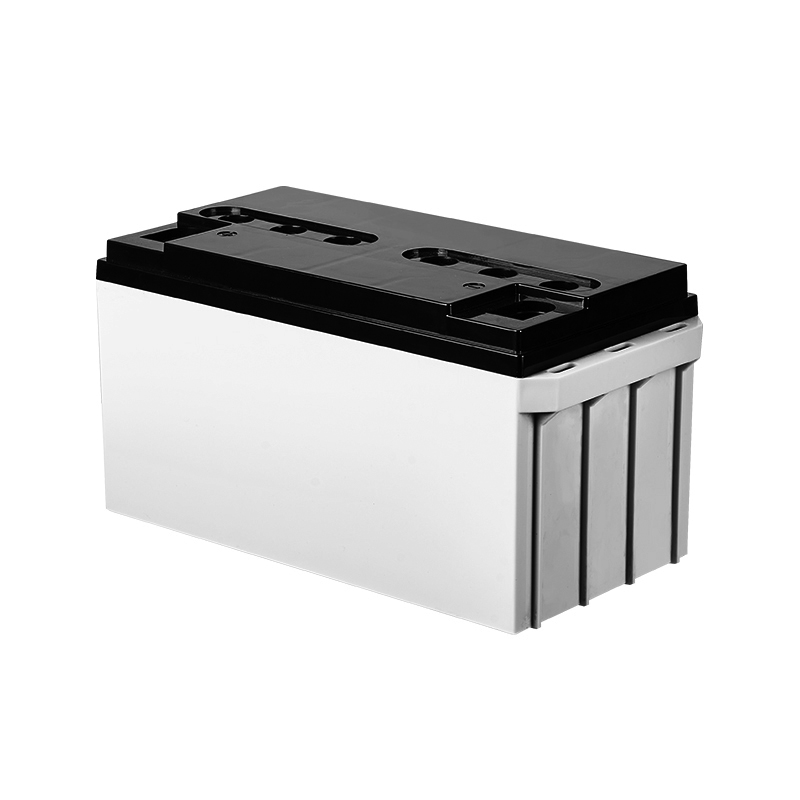

    12V65-2 331*173*165mm 163*52*141mm
    12V65-3 331*173*165mm 163*52*141mm

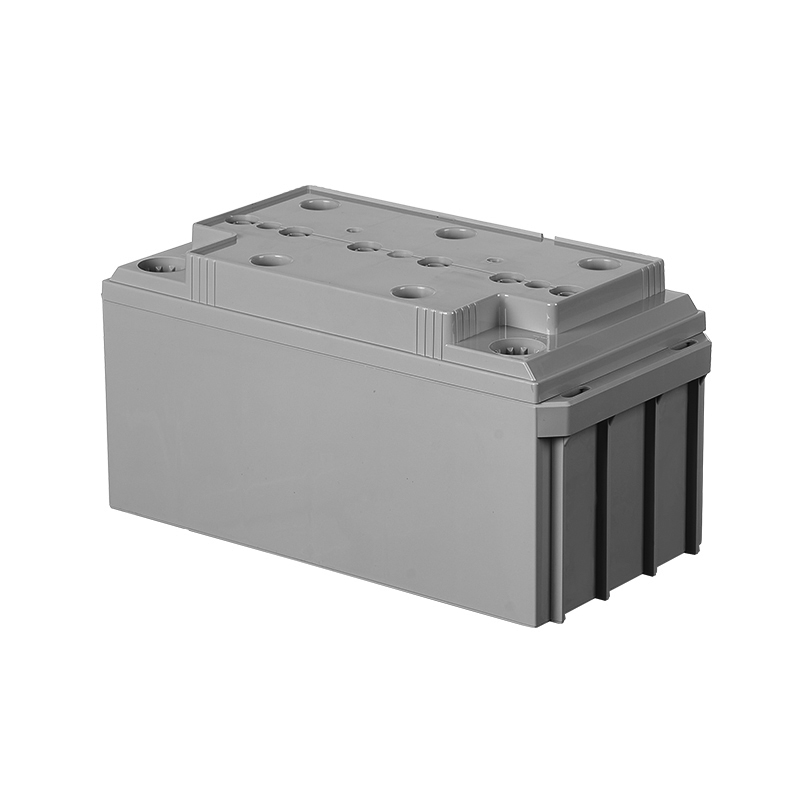

    12V 65AH 349 *166*173 mm 158*50.7*138 mm

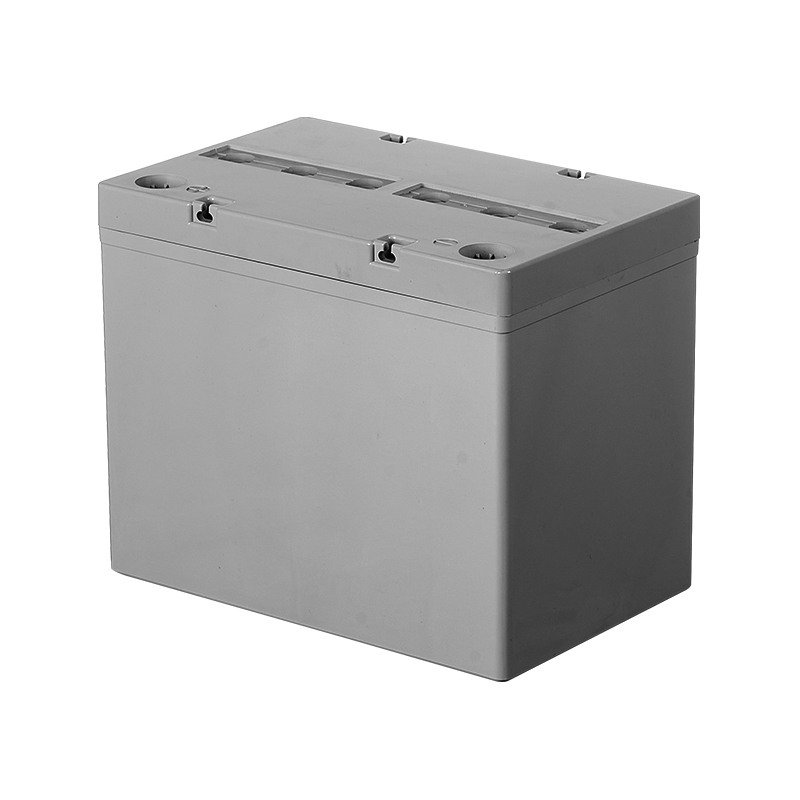

    12V70A 260*169*212mm 159*40*195mm
    Eastar 12V65 351*168*179mm 161*50.5*151.7mm

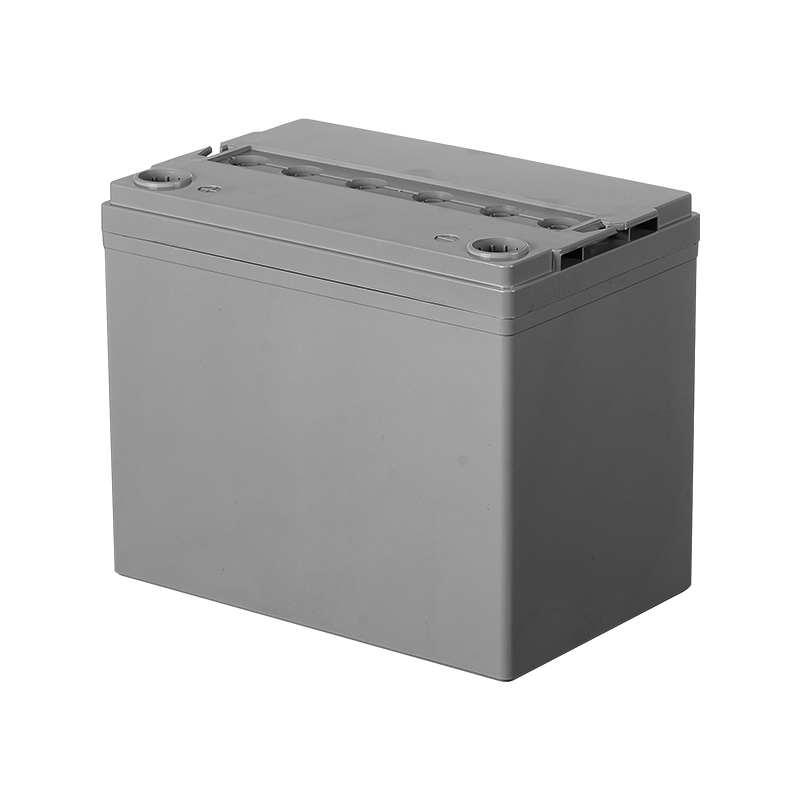

    12V70B 260*169*212 mm 159*40*195 mm

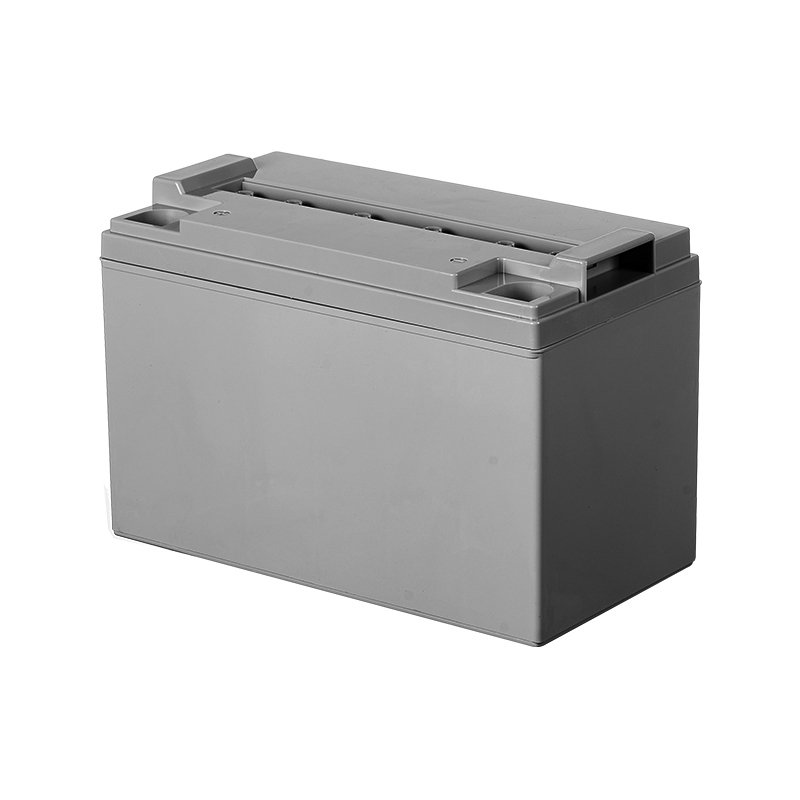

    12v100-1 331*173*216mm 163*52*190mm
    12V100-3 331*173*216mm 163*52*190mm

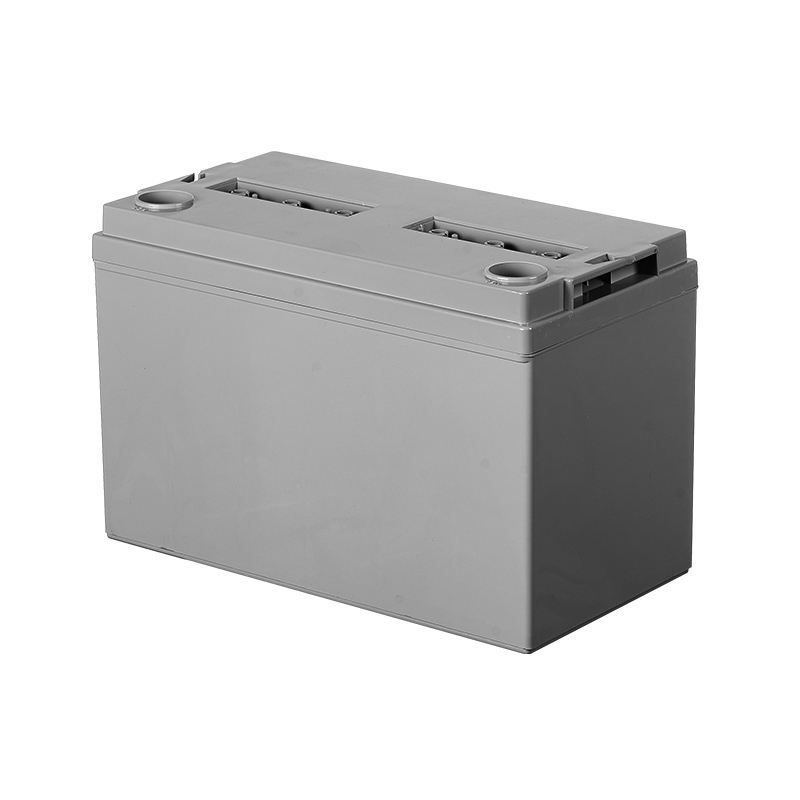

    12V B100 406*173*223mm 163*64*187mm

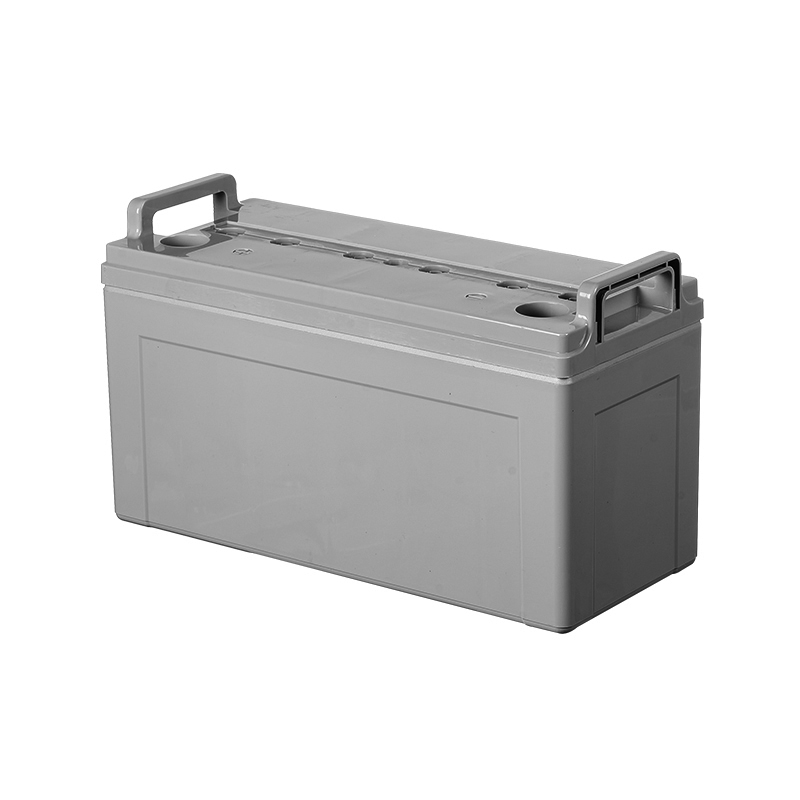

    12V 120AH (Copper Edition) 406*173*223mm 163*64*187mm
    12V 120AH (Lead-acid) 406*173*223mm 163*64*187mm

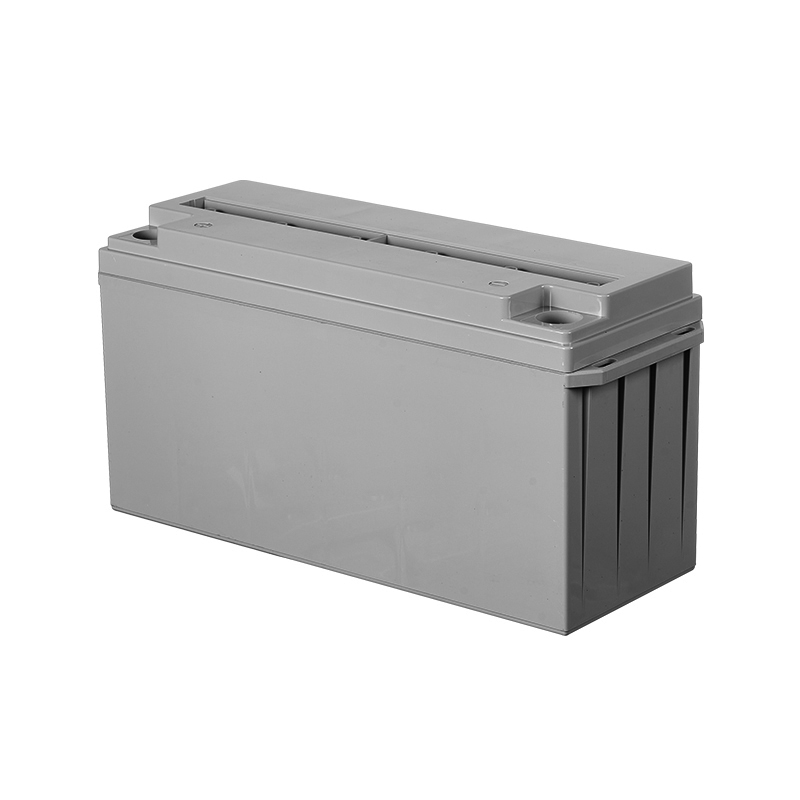

    12V 150AH 482*170*241 mm 160*71*209 mm

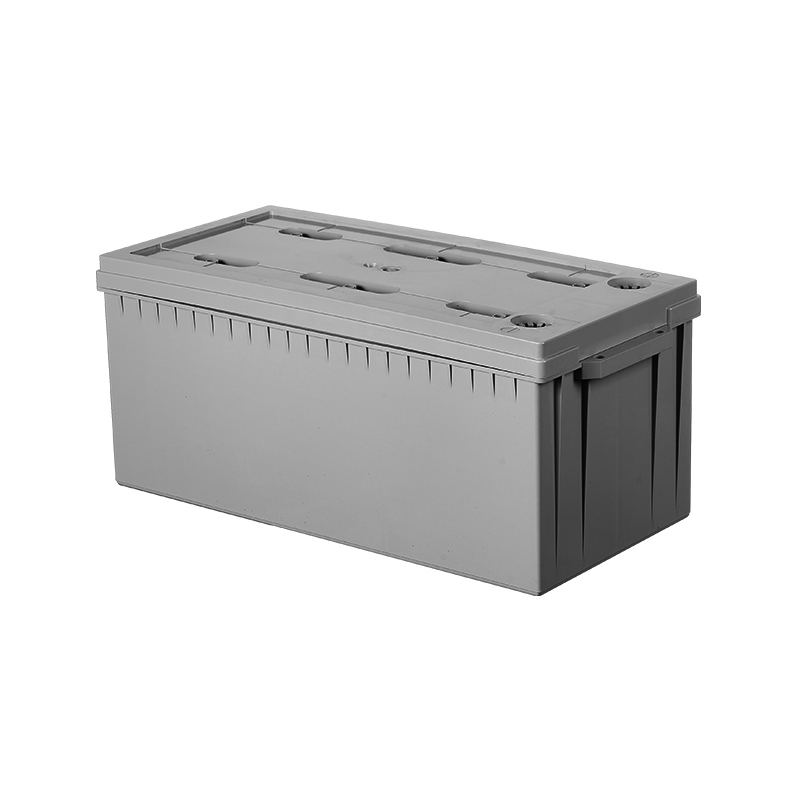

    12V 200AH 521*239*220 mm 157*110*196 mm
