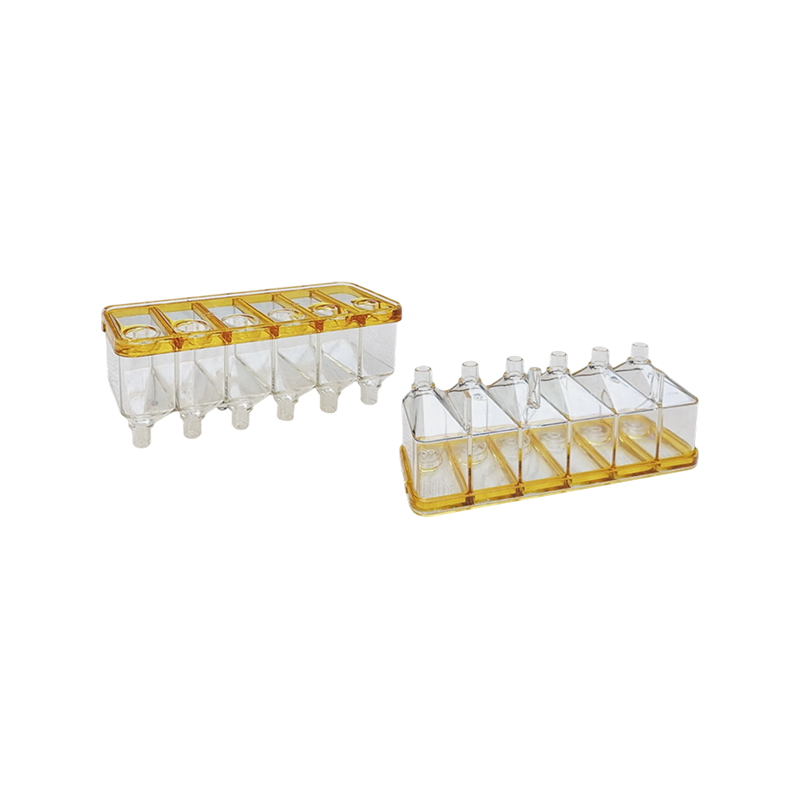

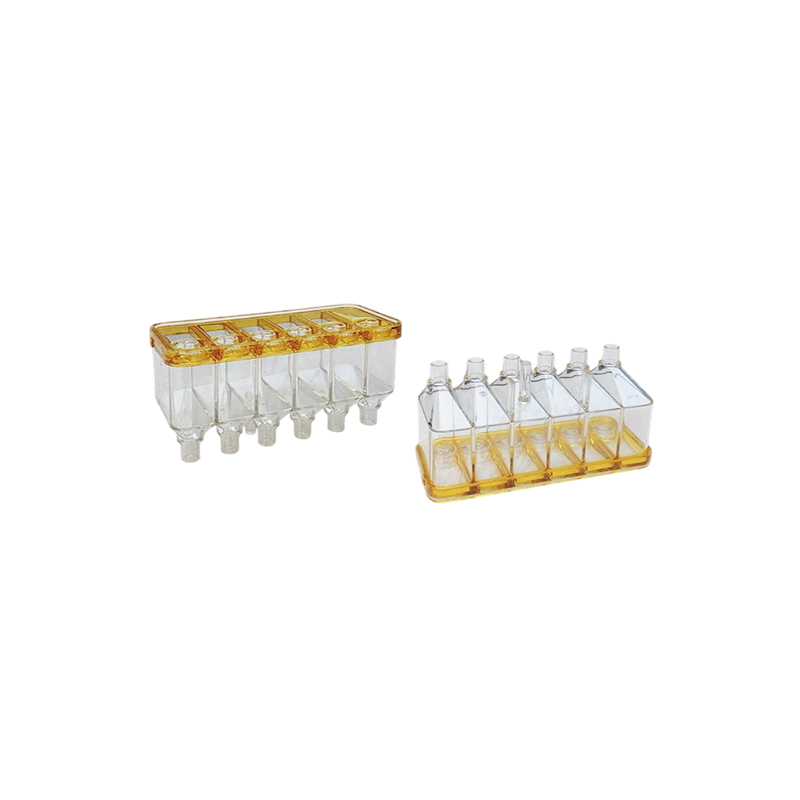

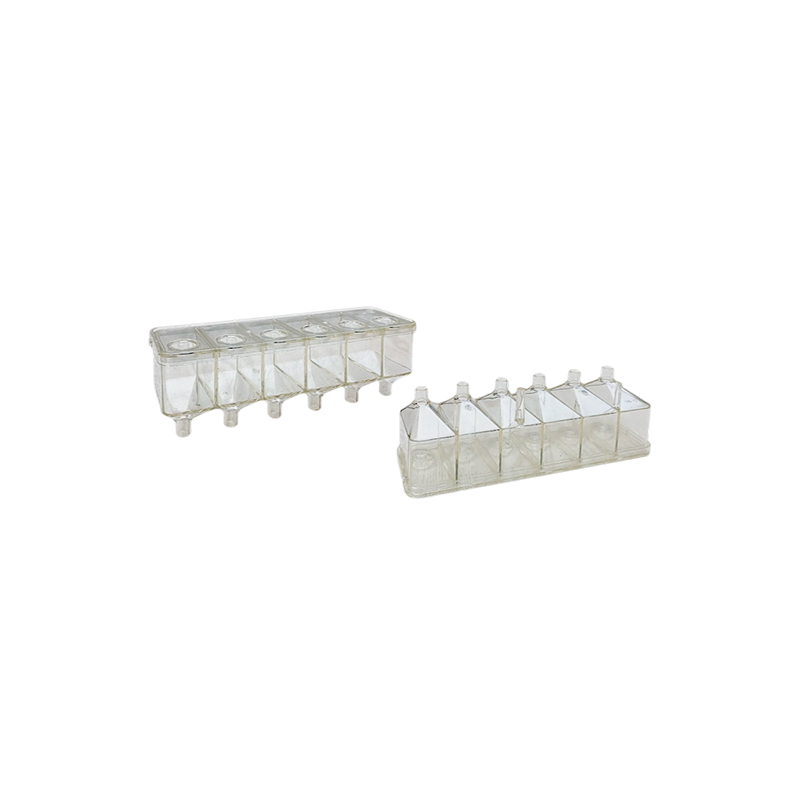

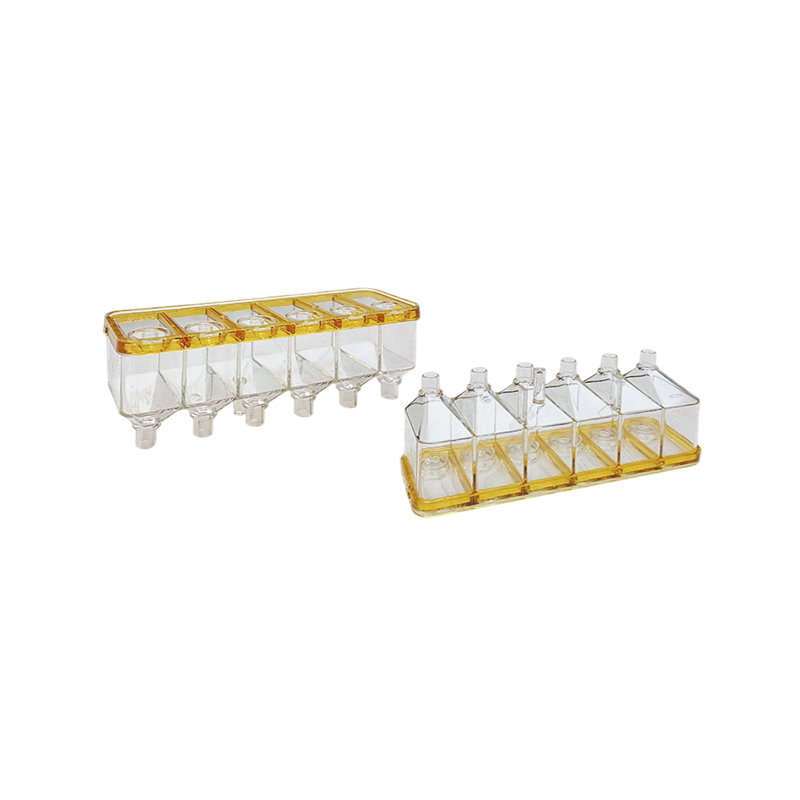

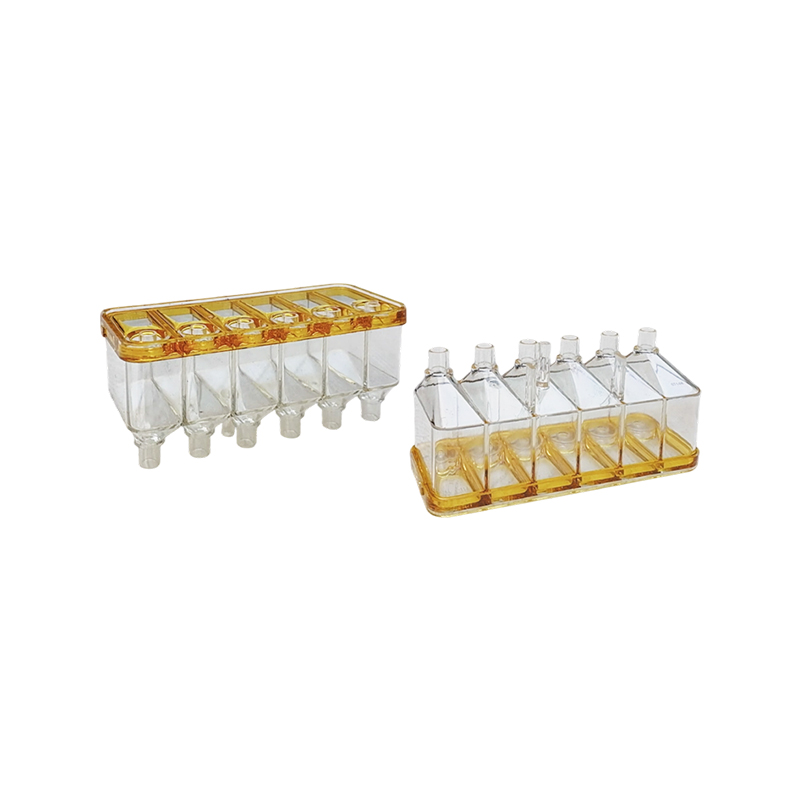

9.8mm Industrial Battery Electrolyte Manifold Filling System

This product range consists of industrial-grade plastic multi-cell connected battery filler jugs, electrolyte dispensers, and refilling container portfolios. It is engineered primarily for industrial manufacturing workshops, automated battery assembly lines, automotive MRO maintenance centers, and commercial material handling fleets to quickly, safely, and accurately dispense diluted sulfuric acid or distilled water into lead-acid batteries.
Instead of using traditional slow funnels that require continuous manual holding and only fill one single port at a time, our containers feature synchronized multi-spout layouts with integrated anti-slip balance legs. The spout outer diameters and center-to-center pitches are built to match global standard battery layouts perfectly, allowing operators to achieve efficient multi-cell simultaneous symmetric filling with a single pour. Depending on specific industrial applications, the portfolio utilizes high-acid-resistant Polypropylene (PP) or crystal-clear Polycarbonate (PC) resin injection molding, acting as high-turnover workshop hardware for international battery supply chains.
Specific Applications (Detailed Breakdowns)
Supported by a comprehensive structural matrix of technical pitches and nozzle configurations, our container lineup serves distinct global B2B industrial applications:
Standard Commercial Vehicles & Medium-Sized Energy Storage Arrays: Deploys the high-turnover GT7-A, GT14H, GT16H, GT20H, YHD-12, and GT24H Series (Premium PC Resin). This entire product block delivers a unified 9.8mm spout O.D. designed for the most dominant medium-sized lead-acid power cells. It covers critical industry-standard pitches including 21mm, 23.6mm, 27.5mm, 28mm, and 32.5mm to accommodate standard filling volumes of 40ml, 50ml, and 65ml. The heavy-duty round-to-square transition balance legs guarantee rock-solid anchoring onto battery cell covers.
Ultra-Compact Cells & Specialty Precision Instrumentation: Deploys the GT5A-3-F Series (Crystal-Clear PC). Featuring an ultra-fine 5mm spout O.D., it is custom-engineered for micro-aperture batteries, with a graduated alternating 14-22-14-22-14mm pitch for controlled 25ml micro-pouring.
28AH Batteries & Multi-Core Inline Strip Assembly Lines: Deploys the 28AH Inline Strip Series (PP Material). This includes the standard 13.5mm O.D. / 32mm equal pitch line (160ml cell capacity) and the 11.5mm O.D. dual-row compact block type (30ml capacity), allowing the narrow inline profile to bridge directly over cells.
Golf Cart, Forklift, & Material Handling Fleet Maintenance: Deploys our heavy-duty 6-30 Big-Hole Series (PP Resin). Its 14.8mm spout O.D. and 43.5mm standard pitch align perfectly with traction battery packs commonly found in Western logistics hubs for routine watering and fluid leveling.
Telecom Base Station & Data Center UPS Arrays: Deploys the heavy-duty 3-100 Large-Capacity Series (PP Resin). Boasting a massive 475ml single-cell capacity and a 42mm pitch, it is built for fast volumetric fluid replenishment on heavy standby cells.
Core Features
Integrated Physical Balance Legs (Hands-Free Siting): Models such as the GT7-A/GT14H/GT20H (Round 29-30mm / Square 22-22.5mm legs), YHD-12/GT24H (Round 27-28mm / Square 22.5-23.5mm legs), and 6-30 Big-Hole (24/26mm legs) feature built-in injection-molded support legs. During operation, these legs hook flat onto the battery casing lip, letting the heavy jug stand securely by itself. Operators enjoy hands-free pouring, completely eliminating hand fatigue and drop risks.
100% Industrial-Grade Virgin Resins (Zero Recycled Scrap): Precision high-frequency series utilize premium Polycarbonate (PC) for extreme impact resistance and clear visual tracking of chemical levels, while heavy-duty high-volume lines adopt Polypropylene (PP) for concentrated acid inertness. Containers will not soften, crack, or leach impurities under continuous exposure to corrosive sulfuric acid.
Flawless Industry-Standard Blueprint Layouts: Ranging from tightly spaces pitches up to standard 21mm, 23.6mm, 27.5mm, 28mm, 32.5mm, 42mm, and 43.5mm equal spacing layouts, our matrix effortlessly mirrors the terminal blueprints of global battery brands.

9.8mm Industrial Battery Electrolyte Manifold Filling System
Lead Acid Battery Plastic Accessories
  • Product Specifications

    Model Dimensions LxWxH (mm) Outer diameter (mm) Capacity per compartment (ml) Height of support feet (mm)
    GT7-A 137x56x73 9.8 40 Round 29 / Square 22.5
    YHD-12 200x59x72 9.8 65 Round 28 / Square 23.5
    GT14H 142x59x72 9.8 40 Round 30 / Square 22
    GT16H 168x59x71 9.8 50 Round 27.5 / Square 21
    GT20H 174x54x72 9.8 50 Round 29 / Square 22
    GT24H 200x59x71 9.8 65 Round 27 / Square 22.5
