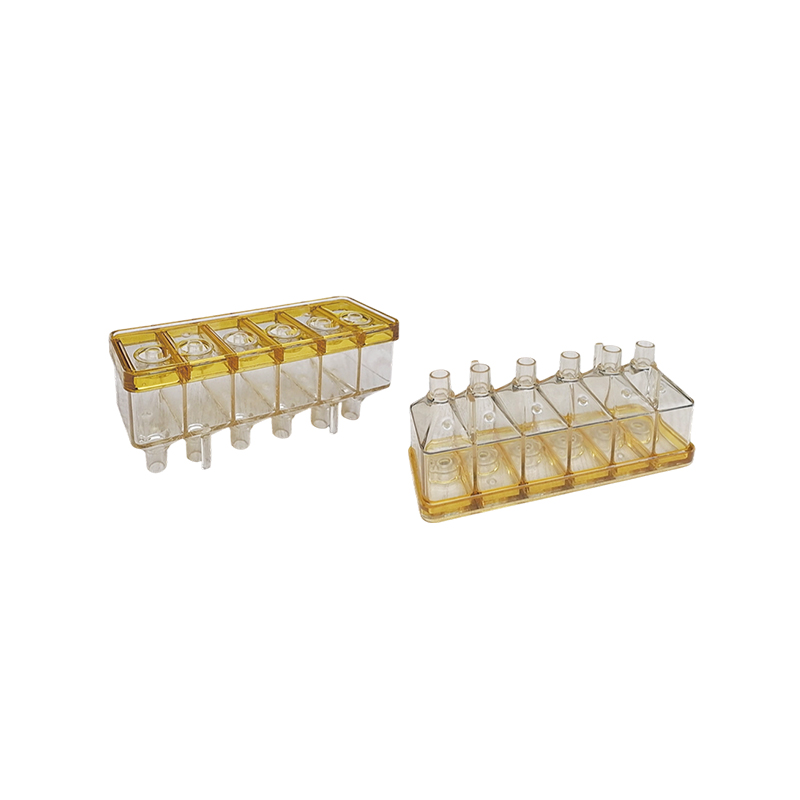

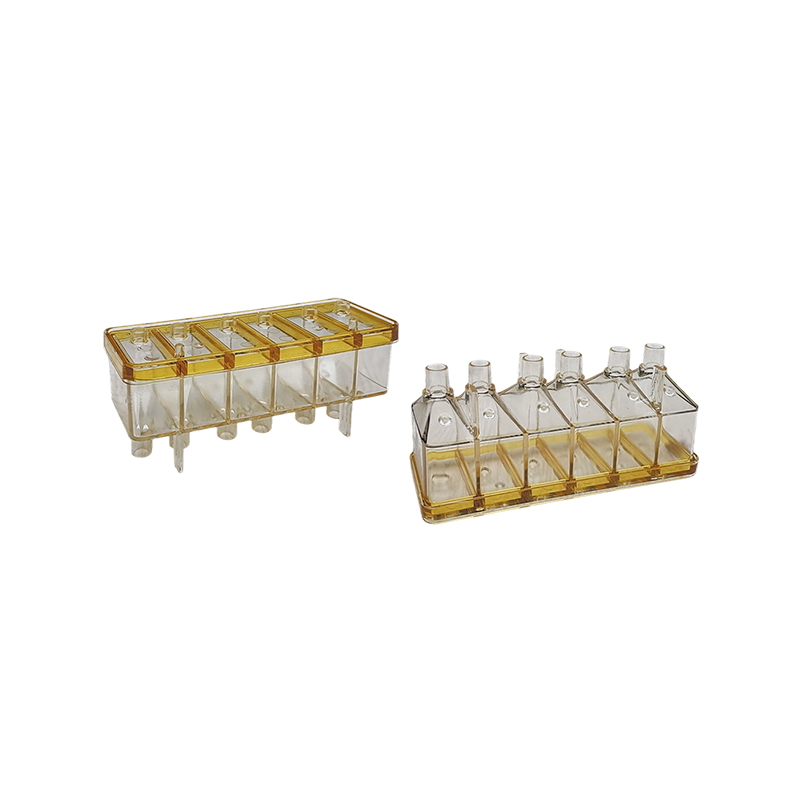

8mm Multi-Spout Battery Electrolyte Filling Jug System

This product range consists of industrial-grade plastic multi-cell connected battery filler jugs, electrolyte dispensers, and refilling container portfolios. It is engineered primarily for industrial manufacturing workshops, automated battery assembly lines, automotive MRO maintenance centers, and commercial material handling fleets to quickly, safely, and accurately dispense diluted sulfuric acid or distilled water into lead-acid batteries.
Instead of using traditional slow funnels that require continuous manual holding and only fill one single port at a time, our containers feature synchronized multi-spout layouts with integrated anti-slip balance legs. The spout outer diameters and center-to-center pitches are built to match global standard battery layouts perfectly, allowing operators to achieve efficient multi-cell simultaneous symmetric filling with a single pour. Depending on specific industrial applications, the portfolio utilizes high-acid-resistant Polypropylene (PP) or crystal-clear Polycarbonate (PC) resin injection molding, acting as high-turnover workshop hardware for international battery supply chains.
Specific Applications (Detailed Breakdowns)
Supported by a comprehensive structural matrix of technical pitches and nozzle configurations, our container lineup serves distinct global B2B industrial applications:
Micro-Precision Instruments & Motorcycle Powersports Batteries: Deploys our premium GT3-3-H, GT2.5-3-E, and GT4-3-G Series (Crystal-Clear PC Resin). Featuring an ultra-fine 8mm spout O.D., they are engineered perfectly for tightly-spaced micro lead-acid cells. They offer an equal 11.5mm pitch, a graduated 14-16-16-16-14mm pitch, or a staggered 20-15-18-15-20mm pitch to lock onto unique battery blueprints seamlessly, utilizing see-through housings for tracking 25ml-30ml micro-volumes.
Compact Start-Stop & Miniature Battery Cell Assembly: Deploys the 6DW8 Wide & Low Series (PC Material) with a 9.5mm micro-spout O.D. and highly dense 16mm center pitch for rapid 6-cell synchronized pouring on fast assembly lines.
Golf Cart, Forklift, & Material Handling Fleet Maintenance: Deploys our heavy-duty 6-30 Big-Hole Series (PP Resin). Its 14.8mm spout O.D. and 43.5mm standard pitch align perfectly with traction battery packs commonly found in Western logistics hubs for routine battery watering and fluid leveling.
Telecom Base Station & Data Center UPS Arrays: Deploys the heavy-duty 3-100 Large-Capacity Series (PP Resin). Boasting a massive 475ml single-cell capacity and a 42mm pitch, it is built for fast volumetric fluid replenishment on heavy standby cells.
Large-Aperture Heavy Industrial Single Cells: Deploys the Return-Tube Battery Filler Series (23mm spout O.D., 325ml capacity) with specific dual internal fluid-air paths to stop airlocks and dangerous chemical spit-backs.
Core Features
Integrated Physical Balance Legs (Hands-Free Siting): Models such as the GT3-3-H (19mm legs), GT2.5-3-E / GT4-3-G (18mm legs), 6-30 Big-Hole (24/26mm legs), and 3-100 series (27mm legs) feature built-in injection-molded support legs. During operation, these legs hook flat onto the battery casing lip, letting the heavy jug stand securely by itself. Operators enjoy hands-free pouring, completely eliminating hand fatigue and drop risks.
100% Industrial-Grade Virgin Resins (Zero Recycled Scrap): Precision micro-series utilize premium Polycarbonate (PC) for extreme impact resistance and high visual see-through control, while heavy-duty high-volume lines adopt Polypropylene (PP) for concentrated chemical inertia. Containers will not soften, crack, or leach impurities into your delicate electrolyte under direct continuous exposure to aggressive sulfuric acid.
Flawless Industry-Standard Blueprint Layouts: Ranging from an ultra-dense 11.5mm / 16mm pitch up to 42mm and 43.5mm standard equal spacing, along with complex variable custom layouts (14-16-16-16-14mm).

8mm Multi-Spout Battery Electrolyte Filling Jug System
Lead Acid Battery Plastic Accessories
  • Product Specifications

    Model Dimensions LxWxH (mm) Outer diameter (mm) Capacity per compartment (ml) Height of support feet (mm)
    GT3-3-H 98x44x73 8 25 19
    GT2.5-3-E  79x51x77.5 8 25 18
    GT4-3-G20 111x46x72 8 30 18
