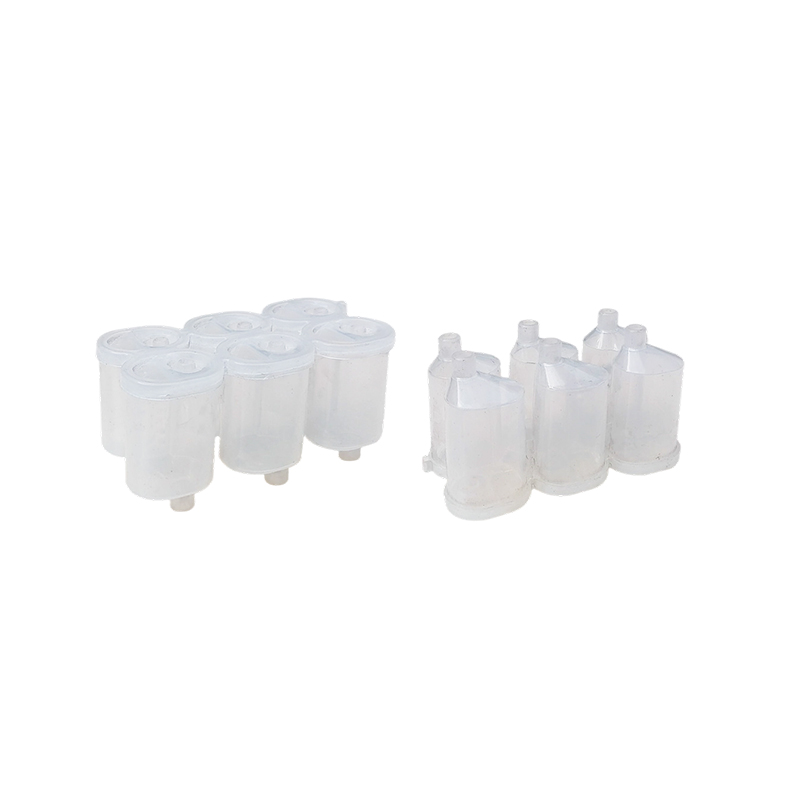

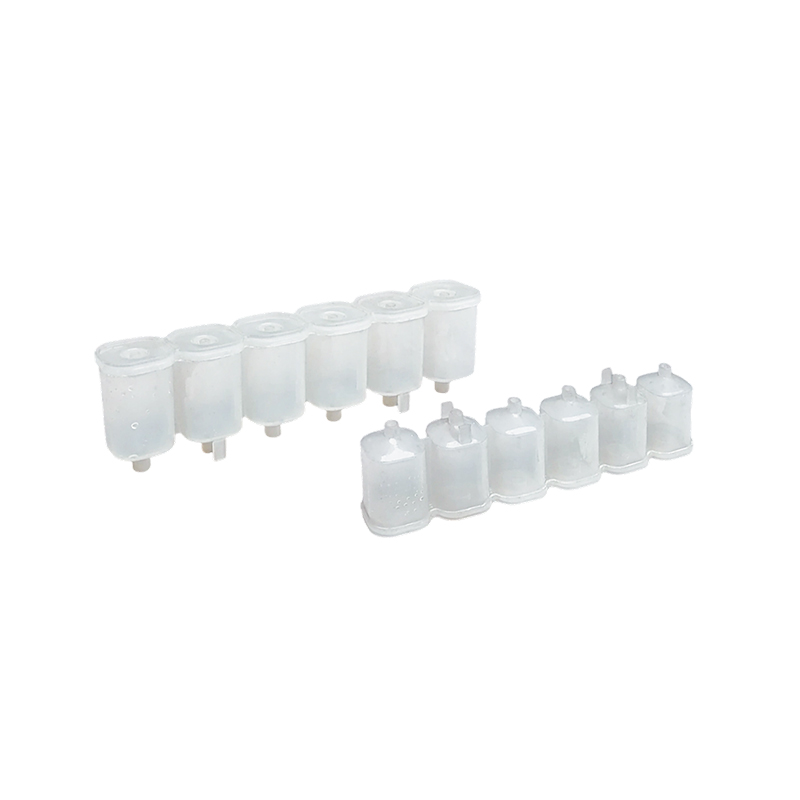

11.5mm Industrial PP Battery Cell Filler & Electrolyte Dispenser Matrix

This product series consists of industrial-grade plastic battery cell fillers engineered for fast, accurate, and hazard-free replenishment of electrolyte (dilute sulfuric acid) or distilled water into various lead-acid batteries. Molded entirely from premium, high-density, chemical-resistant Polypropylene (PP) resin, this lineup is designed to withstand harsh workshop environments.
To flawlessly match standard global battery cell configurations, we offer three core functional layouts: single-row inline connected strips, double-row staggered arrays, and 500ml large-capacity flat single containers. By implementing precise "one-shot multi-hole simultaneous filling," these tools completely replace traditional, slow single-port funnels, ensuring an efficient and clean pour.

Specific Applications
Motorcycle & Powersports Battery Charging: Utilizes the 11.5mm slim-spout series (both the 28AH inline strip and compact array) to seamlessly fit into the narrow, high-density ports typical of smaller starting batteries.
Forklift, Golf Cart, & Fleet Maintenance (Watering Systems): Engineered for the regular topping up of commercial electric material handling fleets across Western logistics and warehousing facilities, using the inline models equipped with 25mm balance support legs.
Heavy Truck, Bus, & Marine Battery Servicing: Paired with the 15mm high-flow large-port series (such as the 10-Big Cap configuration) to handle rapid initial electrolyte filling or high-volume aftermarket remanufacturing.
Telecom Base Stations & UPS Energy Storage Banks: Deployed on massive industrial battery blocks (such as 100AH cells) via the 500ml large-capacity single unit to facilitate rapid single-cell fluid leveling without messy refills.
International Tool Distributors & MRO Sourcing Networks: Sourced in high volume as essential workshop consumables for automotive parts distribution channels and battery service networks.

Core Features
Comprehensive Array & Pitch Portfolio: Features three strategic nozzle outer diameters (O.D.): 11.5mm, 13.5mm, and 15mm. Available in pitch layouts including an equal 52mm inline pitch, 31.5-35.5mm tight arrangements, and dual-row arrays to fit major international battery housing designs.
Autonomous Balance Support Legs (Hands-Free): Dedicated models integrate molded support legs available in heights of 19mm, 22.5mm, and 25mm. The jug can sit steadily flat on the battery casing step by itself during pouring, completely eliminating operator hand fatigue and the risk of accidental chemical spills.
Smooth Anti-Gurgle Fluid Channels: The physical fluid dynamics prevent airlocks and gurgling at the spout base, allowing liquid and air to exchange smoothly, thereby ensuring a fast, clean, and unhindered fluid velocity.
100% Virgin Polypropylene Formulation: Possesses absolute chemical inertness under continuous direct contact with aggressive acid. It will not leach impurities or degrade, fully preserving electrolyte purity.

Sourcing Intentions & Solving Clients' Pain Points
This complete product matrix directly solves major operational pain points for large-scale B2B buyers in Western markets:
Exorbitant Labor Costs & Slow Operations (Cost Optimization): Manual pouring wastes expensive man-hours. 【Our Solution】 Our simultaneous 6-cell connected tooling and massive 500ml single unit volume multiply the pouring speed, helping businesses optimize operational expenses.
Stringent Workplace Safety Regulations (Risk Mitigation): Open funnels lead to regular chemical splashes that violate OSHA or CE regulations. 【Our Solution】 The built-in physical support legs allow hands-free independent balancing on the battery, achieving absolute compliance for clean-room workshop layouts.
Mismatched Tool Specs from Secondary Suppliers (Unified Portfolio): Wholesalers need comprehensive portfolios. 【Our Solution】 We provide a fully verified matrix spanning 11.5mm to 15mm spout O.D., creating a solid foundation for your Private Label catalog or high-volume Wholesale Stock distribution.

OEM / ODM Capabilities
Supported by our dedicated injection molding facility and mold tooling engineering department, we specialize in high-precision B2B custom orders:
Pitch & Spout Custom Retooling: We can modify our mold inserts to adapt the center-to-center pitch, nozzle diameter, or length to fit your proprietary battery casings.
Corporate Branding & Colorways: Caps are customizable in any standard corporate pantone (Red, Yellow, Black, Blue) alongside embossed logo tooling options.
Heavy-Duty Export Logistics Packaging: Standardized with extra-thick double-wall corrugated cartons with precision anti-shock slots for trans-oceanic container pallet loading.

Commercial B2B Exclusive Clause (Filtering Out B2C)
Bulk Procurement Sourcing Notice Only】 The battery cell fillers and electrolyte watering dispensers displayed on this portal are professional industrial workshop tools. We supply exclusively in bulk to battery manufacturers, automotive aftermarket distribution chains, international trading firms, and commercial MRO networks. We do NOT provide single-piece retail for consumer household DIY use. The standard MOQ starts at 1,000 units. Corporate buyers can request free evaluation samples by submitting official business verification to our sales office.

11.5mm Industrial PP Battery Cell Filler & Electrolyte Dispenser Matrix
Lead Acid Battery Plastic Accessories
  • Product Specifications

    Model Dimensions LxWxH (mm) Outer diameter (mm) Capacity per compartment (ml) Height of support feet (mm)
    28AH 315x48x93 11.5 110 19
     12-6 140x73x79 11.5 60 /
    300ml 80x36x177 11.5 300 24.5
